New Type 3 wiring harness fitting U.S. Spec. 1961-1969 carbureted Type 3 models. This wiring harness works with 6-volt and 12-volt electrical systems. If your Type 3 is a European model, or has had some electrical upgrades done to it, some modifications will be required. This wiring harness includes the major components; some miscellaneous wires will be required.
This harness will also fit late models but the headlight harness will have to route across the gas tank.
Component List:

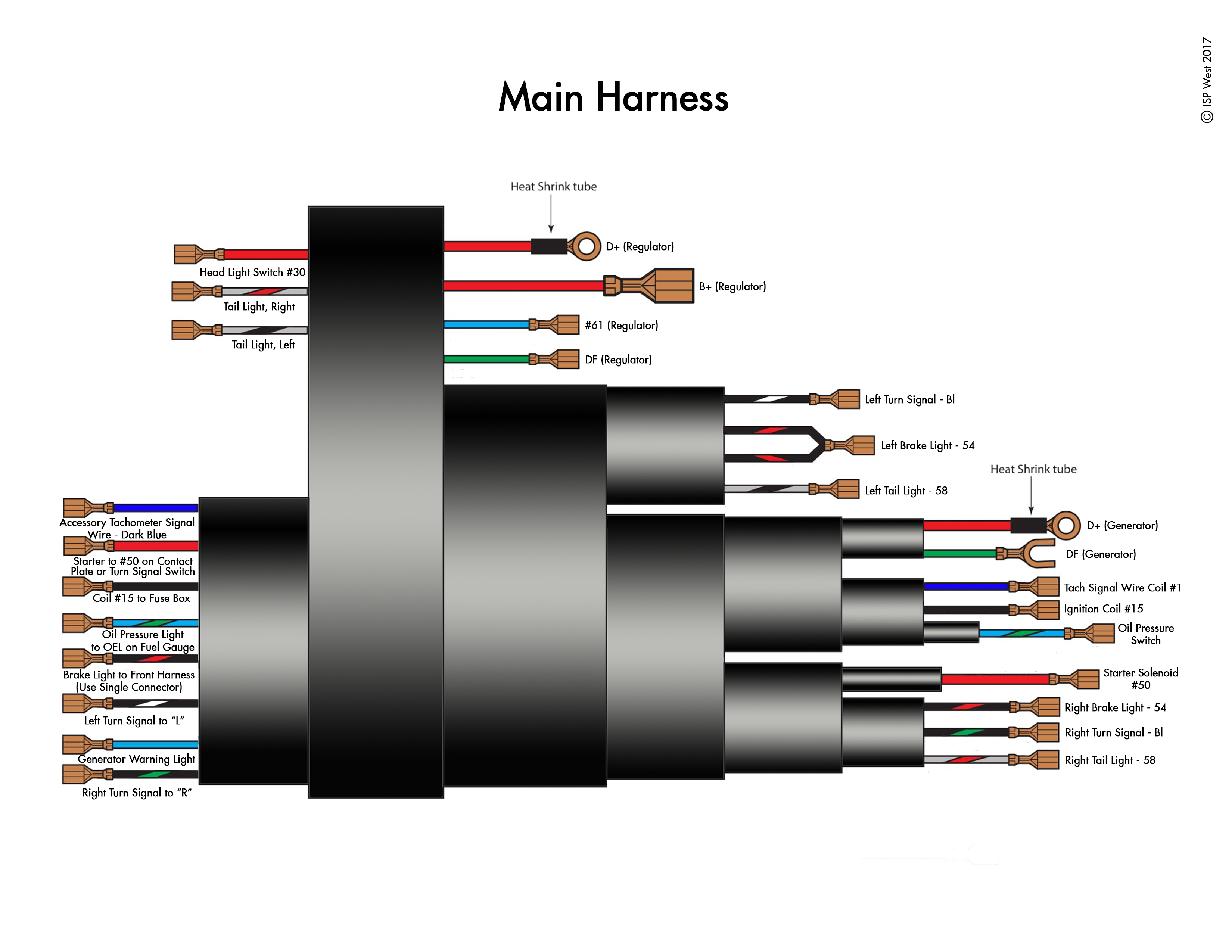

- Main Harness

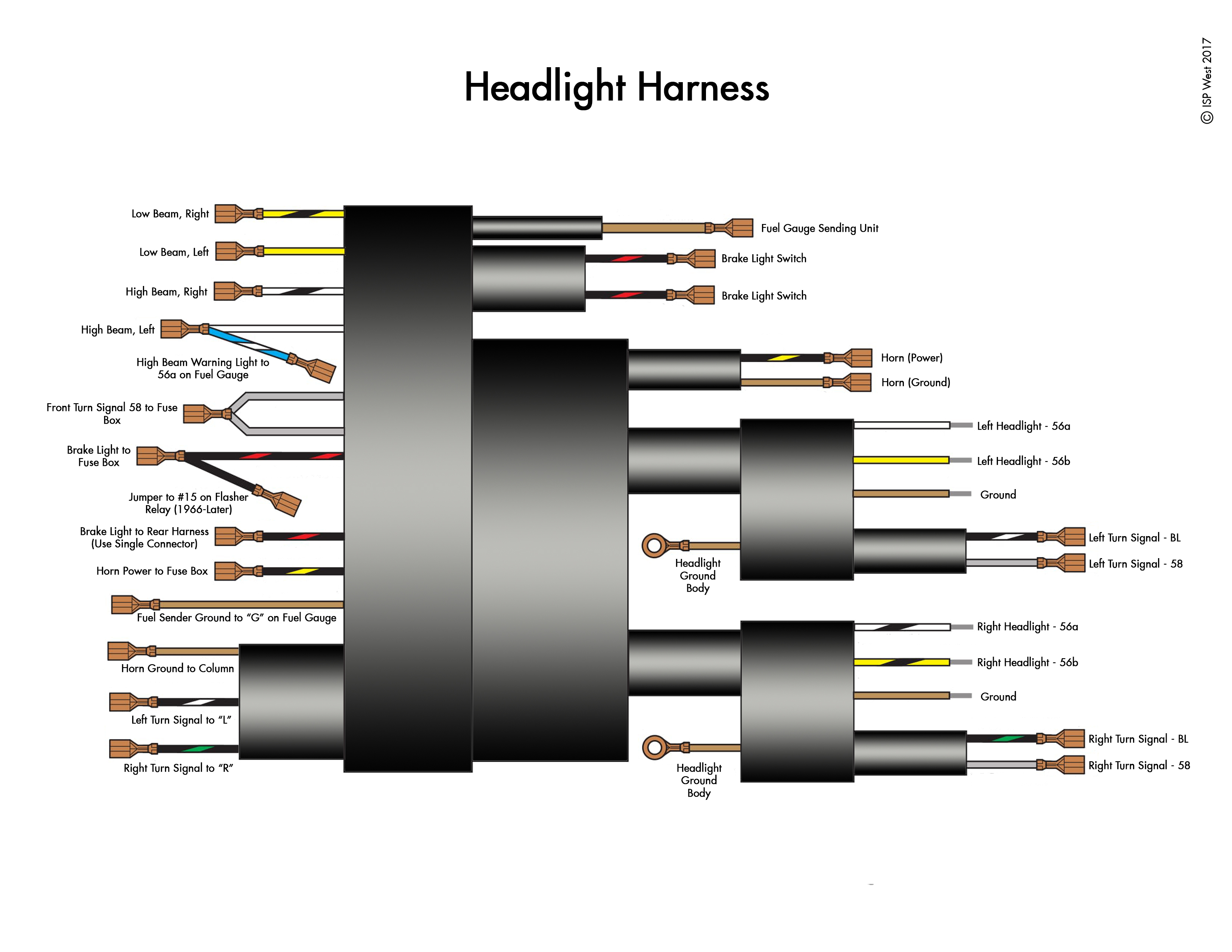

- Headlight Harness
- Dome Light Harness

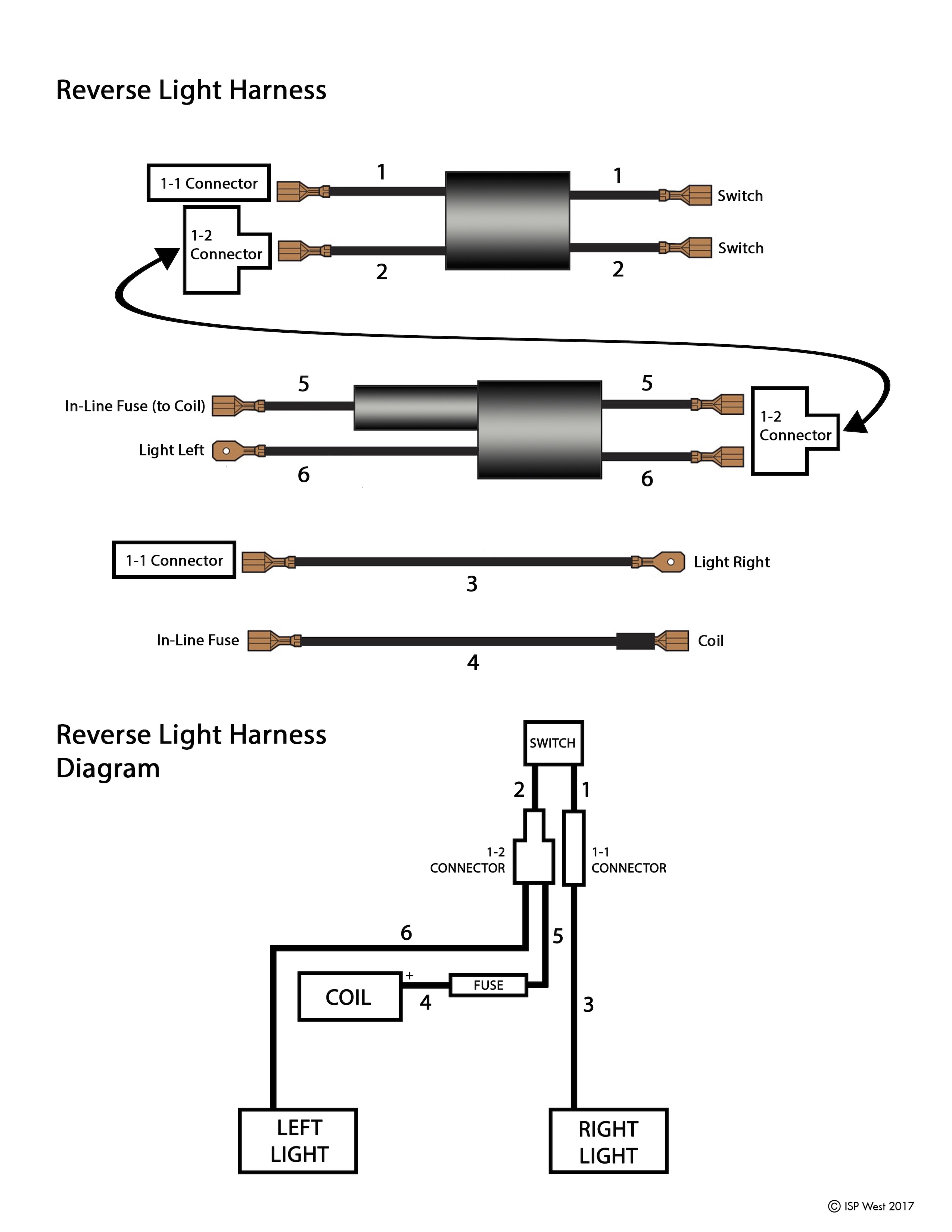

- Reverse Light Harness

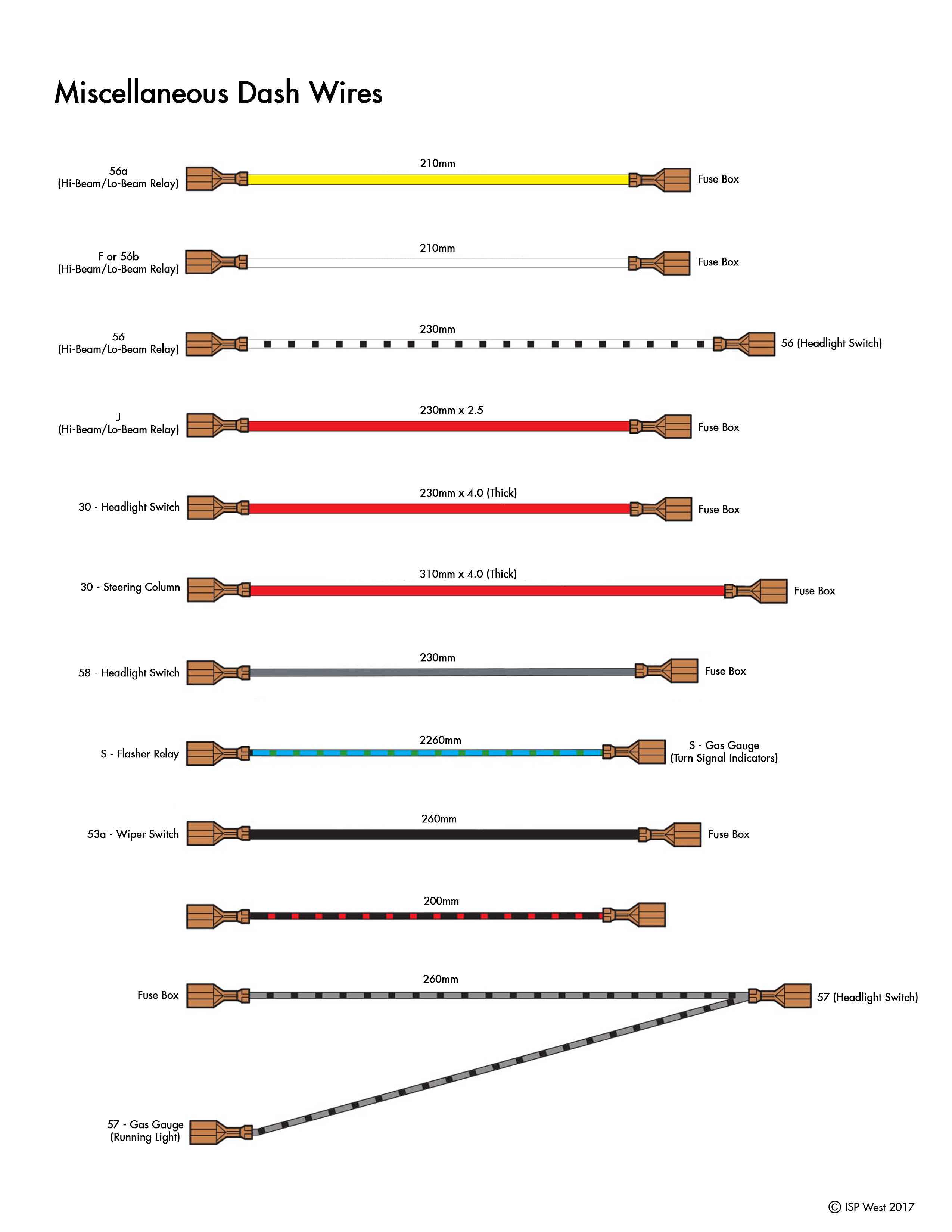

- Misc. Dash Wiring
- Accessory Tachometer Wire
Model Specific Wiring:
- Squareback Rear Dome Light (1962-1966)
- Squareback Rear License Light (1962-1967)

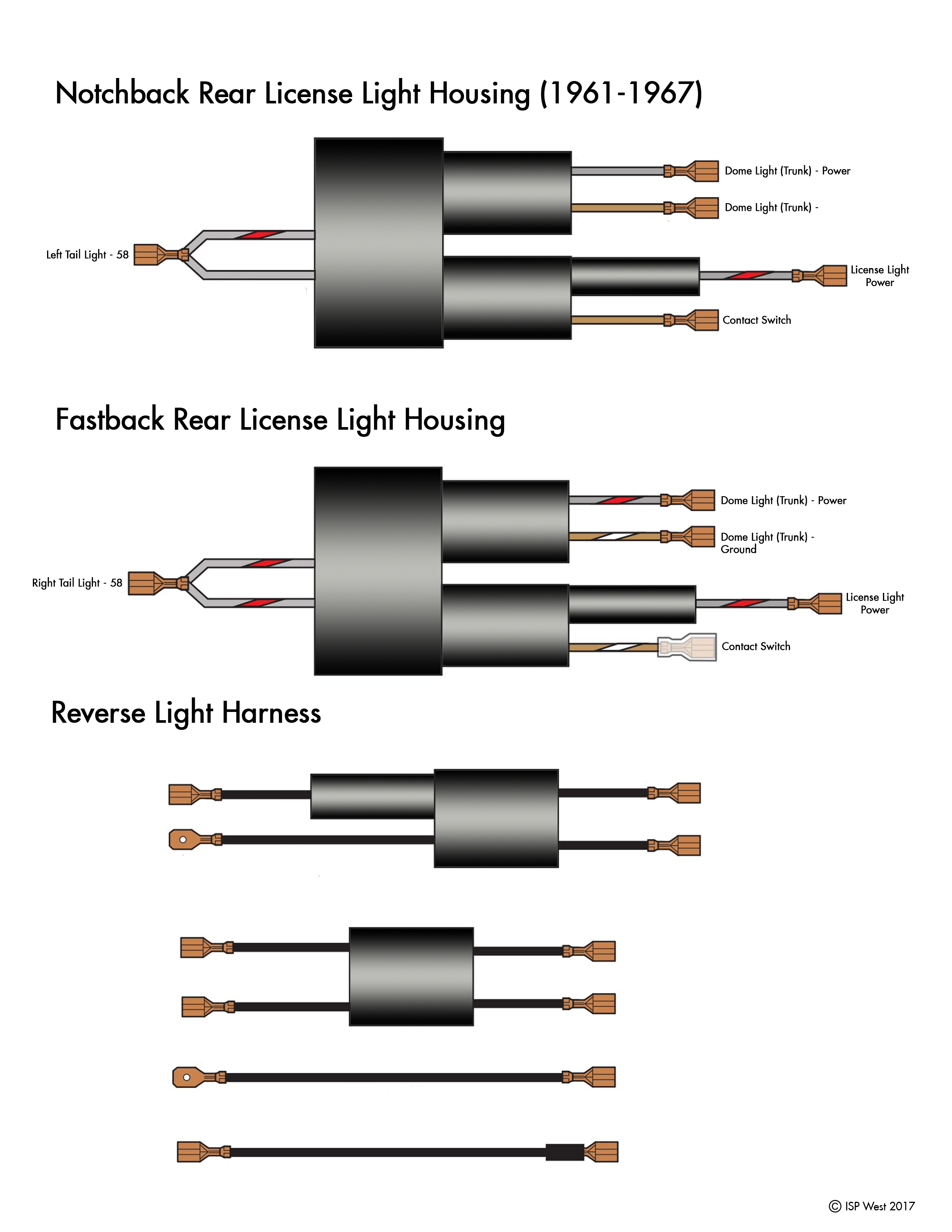

- Notchback Rear Trunk Light & License Light
- Fastback Rear Trunk Light & License Light
Wiring NOT Included:
- Steering Column Pod
- Wiper Motor
- Side-Markers (European)
- Emergency Flasher
- Fuel Injection Harness
Wiring diagrams and installation instructions are on the Instructions tab.

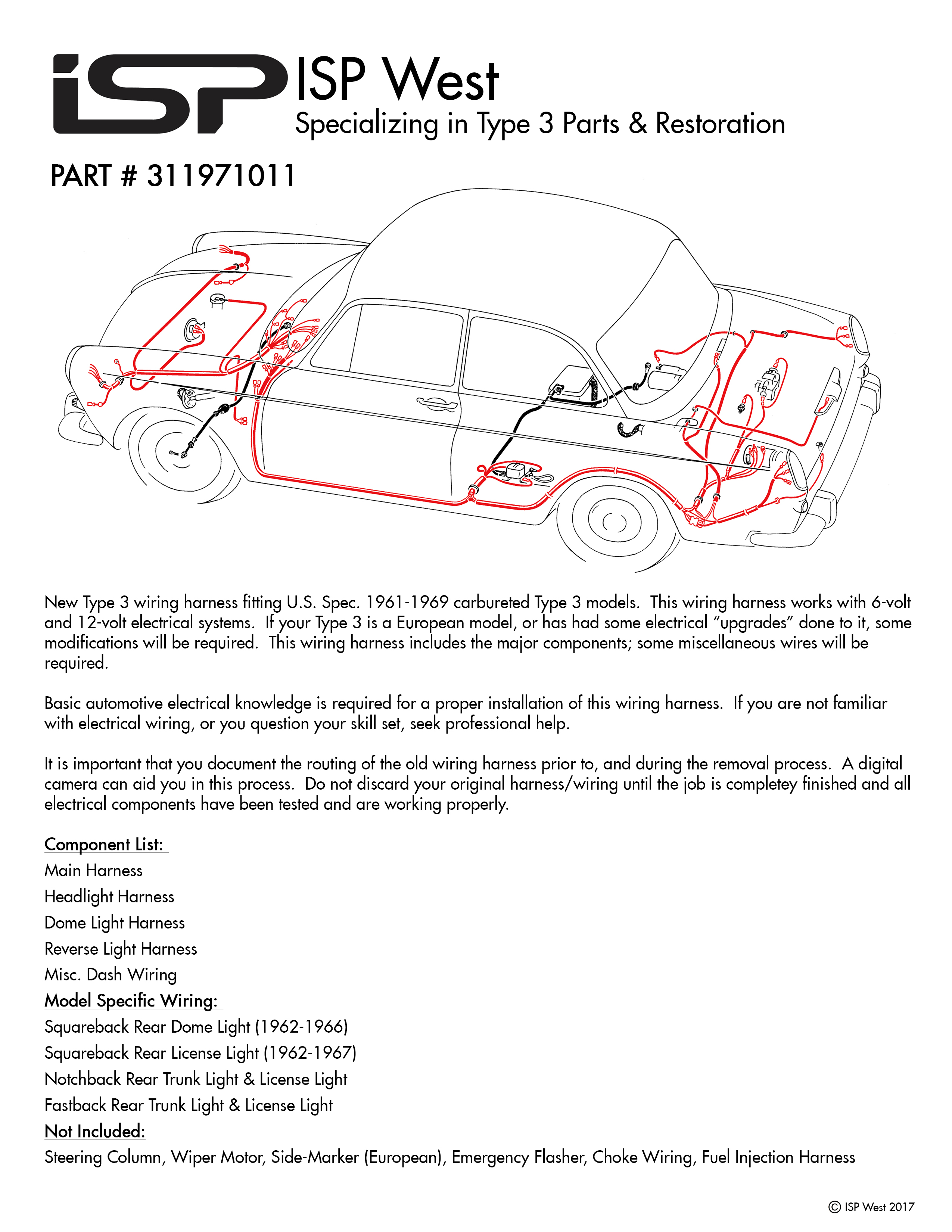

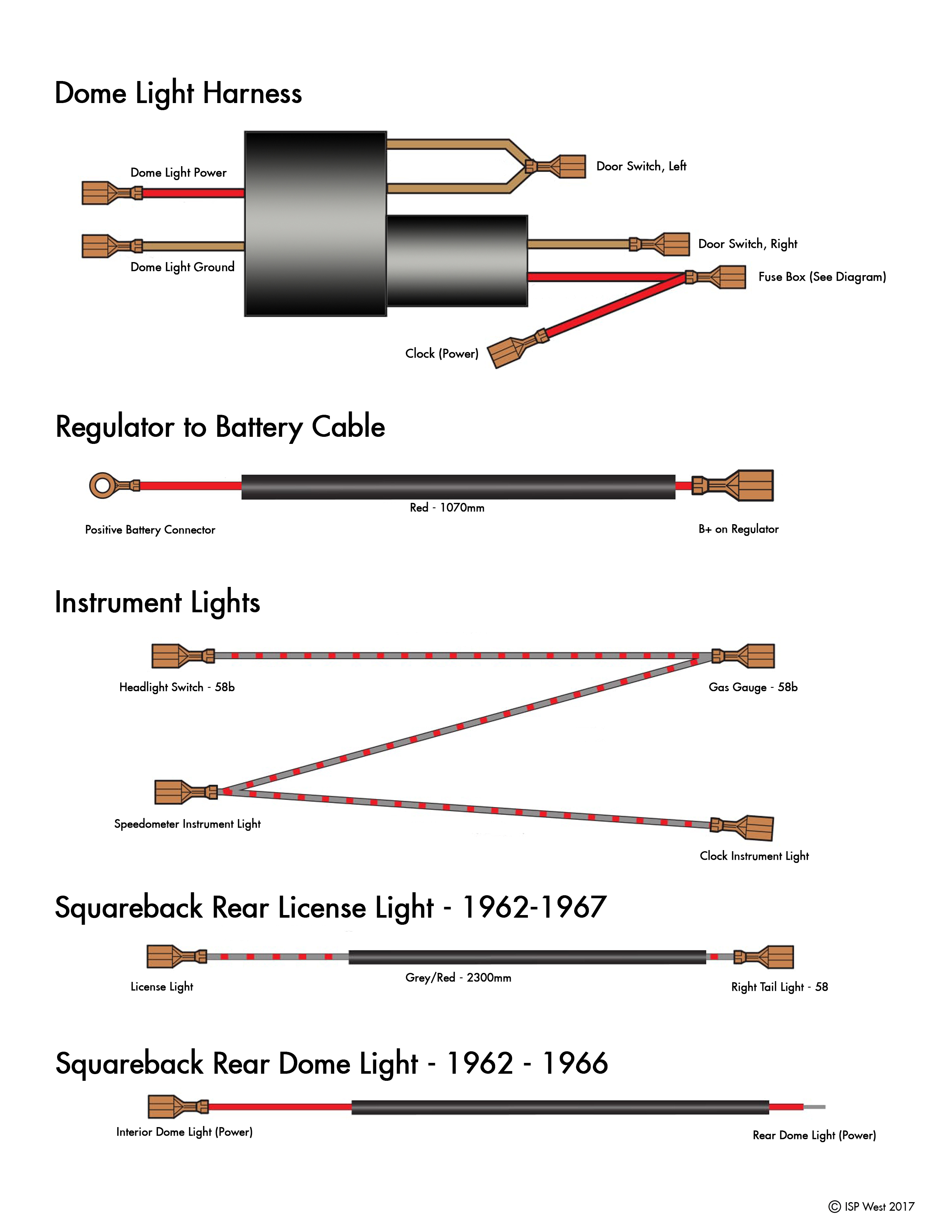

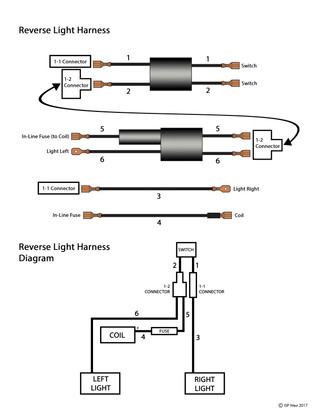

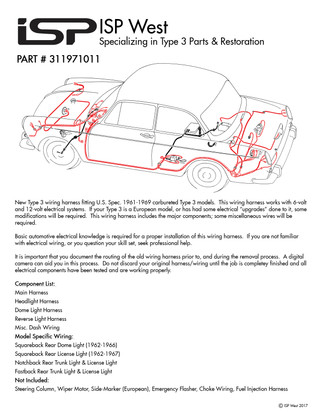

Installation Instructions
7 pages. Click a page to open it full size.

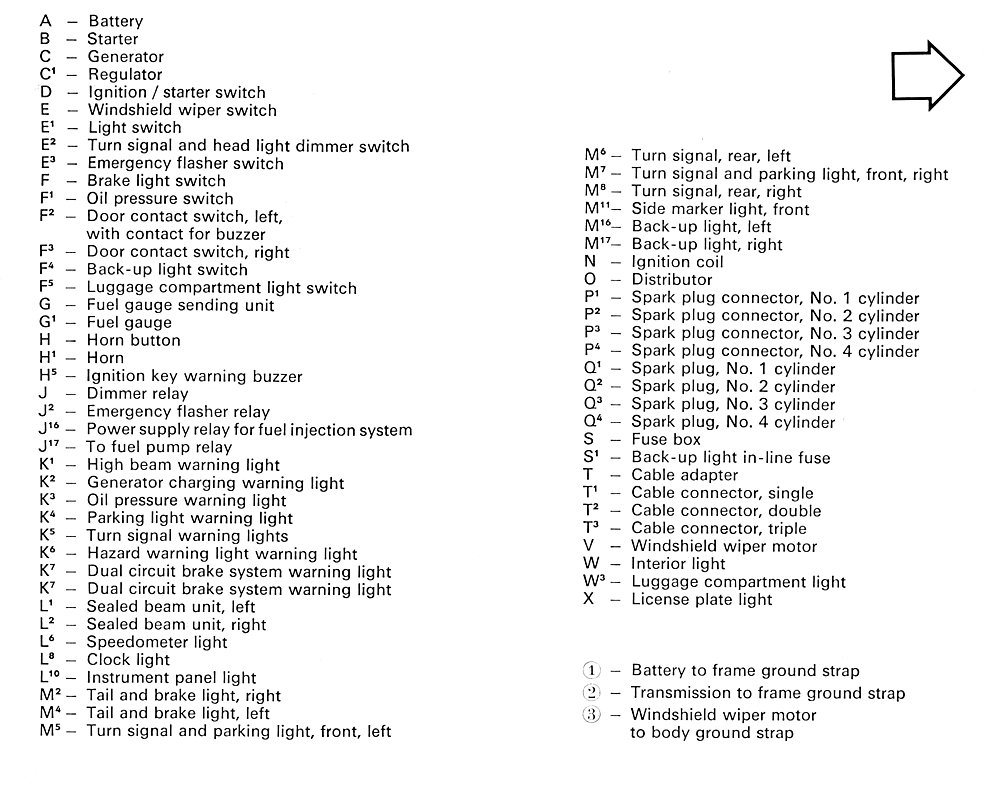

Wiring Diagrams
Click a thumbnail to open the full-size diagram. More Type 3 and Type 34 diagrams are on our Wiring Diagrams page.
| Year | Diagram | Fuse Box | Model / Notes | Printable |
|---|---|---|---|---|

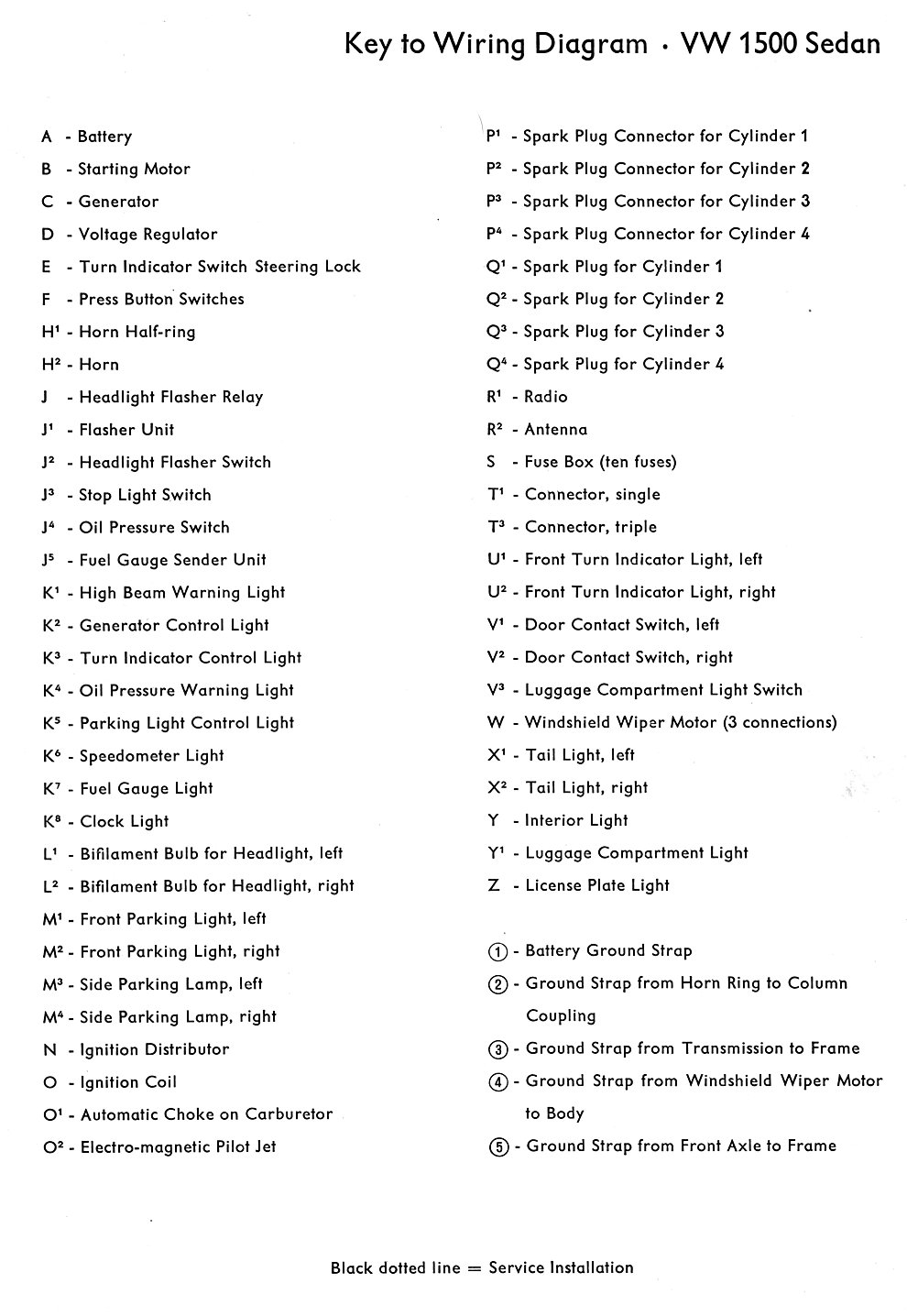

| 1961–1963 |  |
 |
1500 | Diagram PDF |

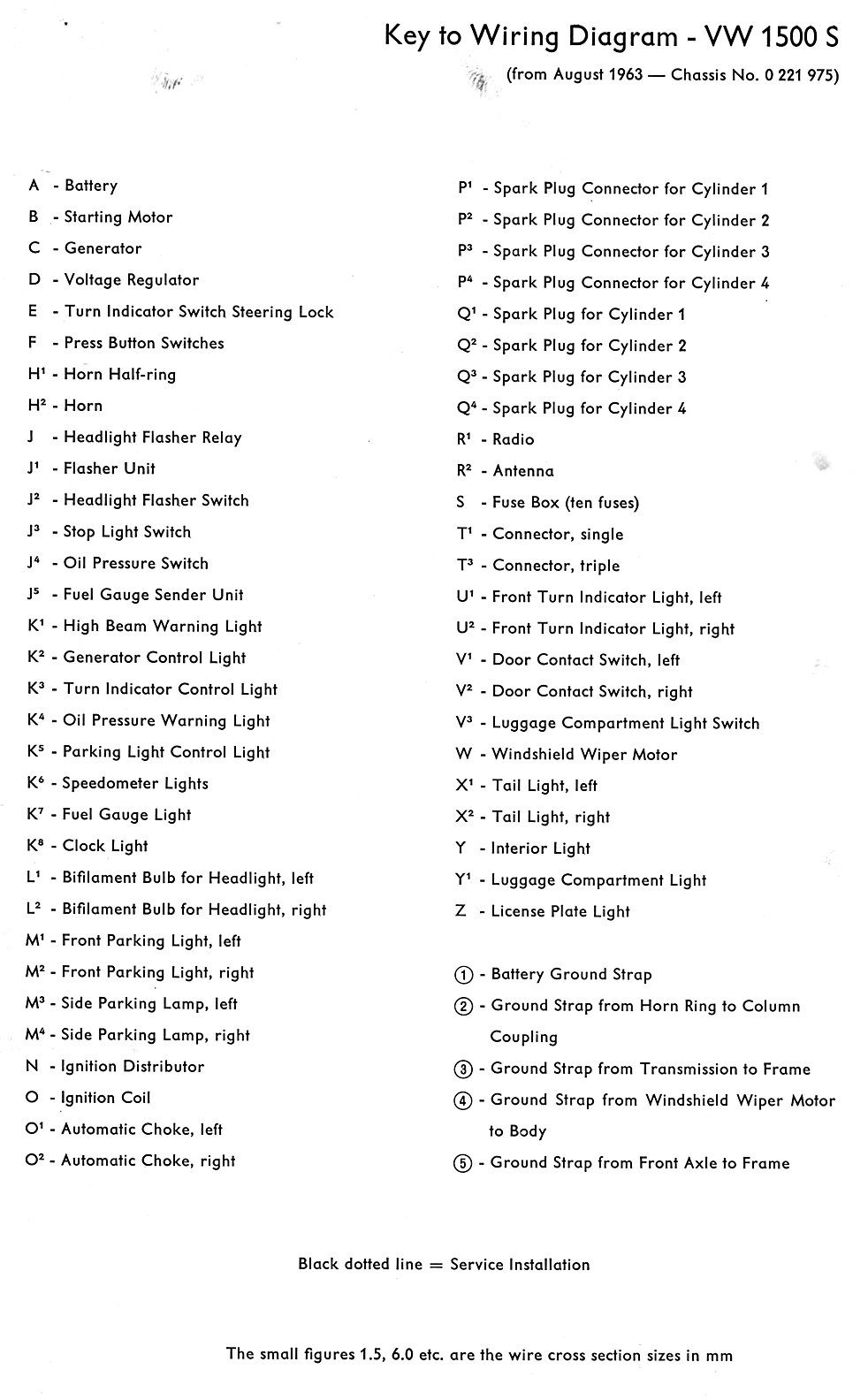

| Early 1964 |  |
 |
1500S (S-Model with push-button switch) | Diagram PDF |
| 1964-1965 |  |
 |
1500N (N-Model) | Diagram PDF |
| 1964–1965 |  |
|
1500S (S-Model) | Diagram PDF |

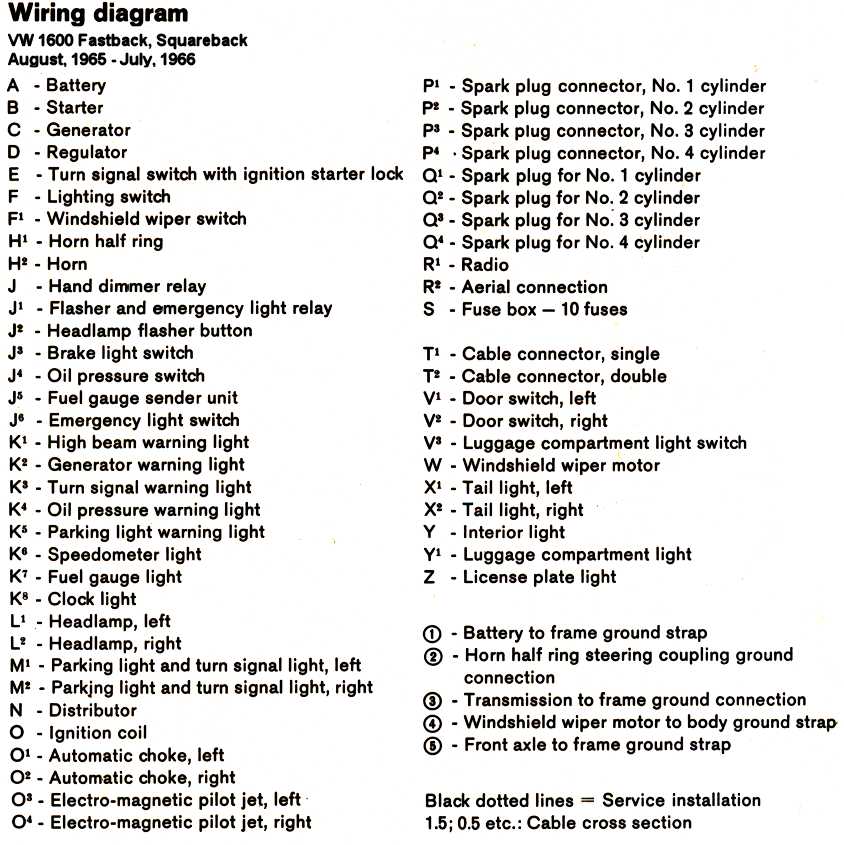

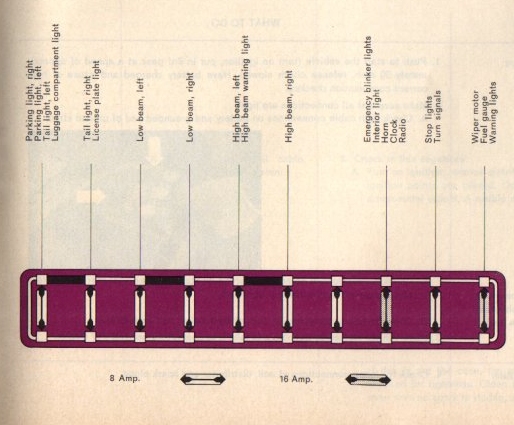

| 1966 |  |
— | 1600 (U.S. Spec) | Diagram PDF |

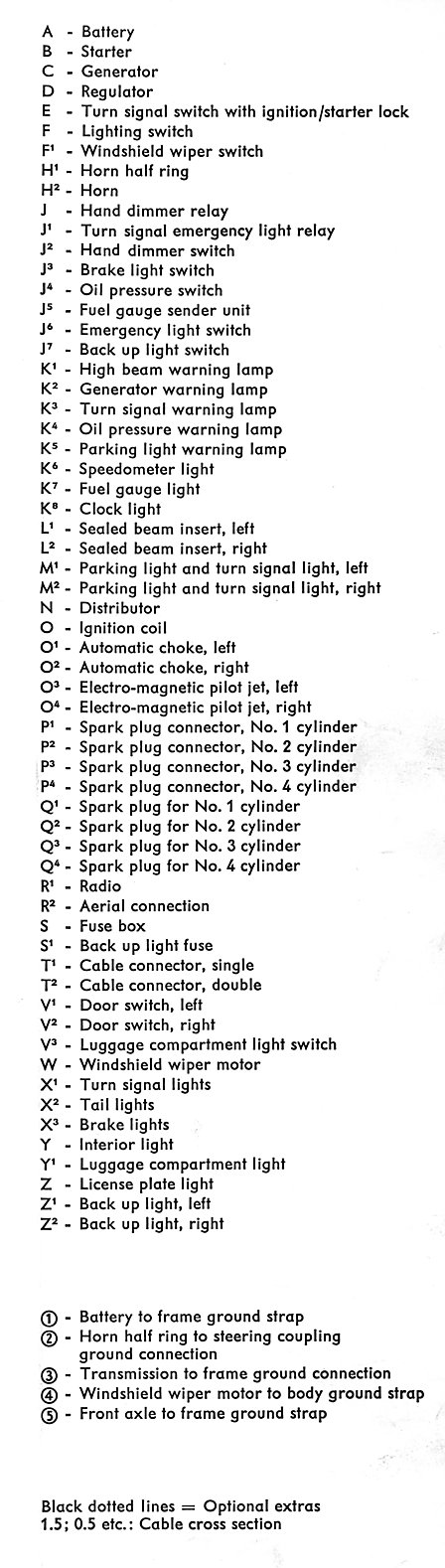

| 1967 |  |
— | 1600 (U.S. Spec) | Diagram PDF |
