Wiring Diagrams
View & print.
View: Click any thumbnail to open the full-size image.
Print: Download a letter-size PDF of any diagram and its key.
Type 3
Notchback, Squareback, & Fastback
| Year | Diagram | Fuse Box | Model / Notes | Printable |
|---|---|---|---|---|

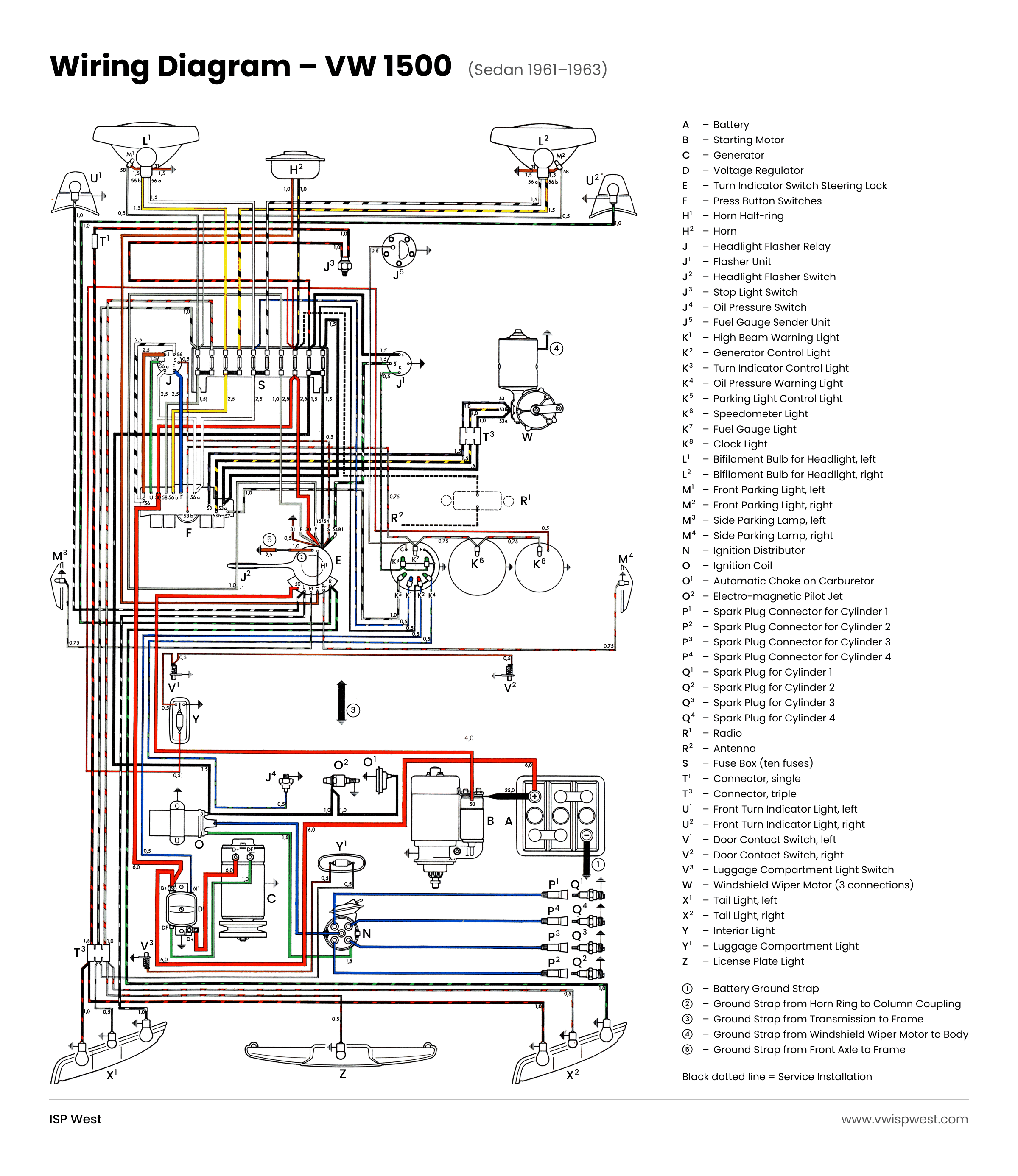

| 1961–1963 |  |
 |

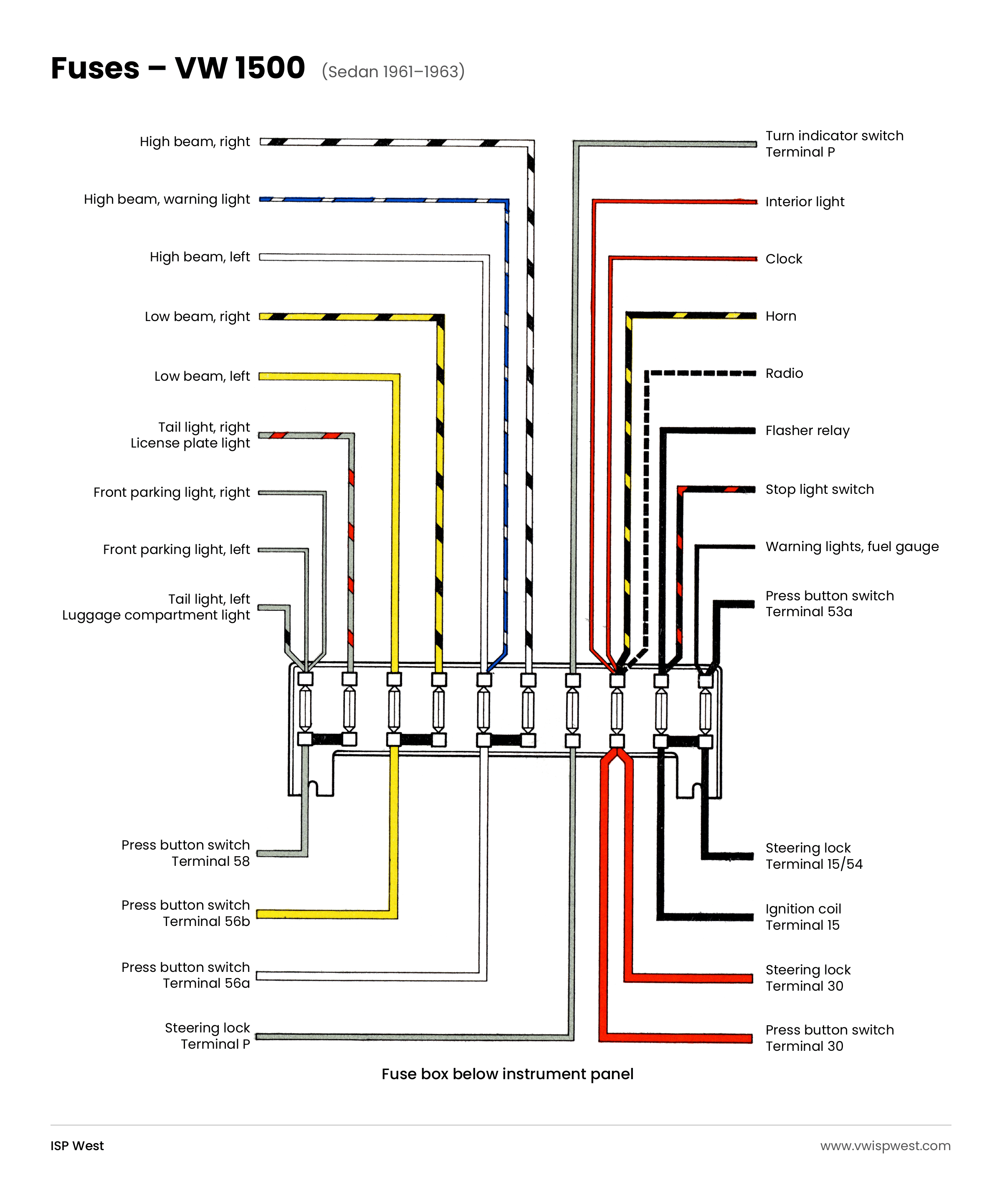

1500 | Diagram PDF |

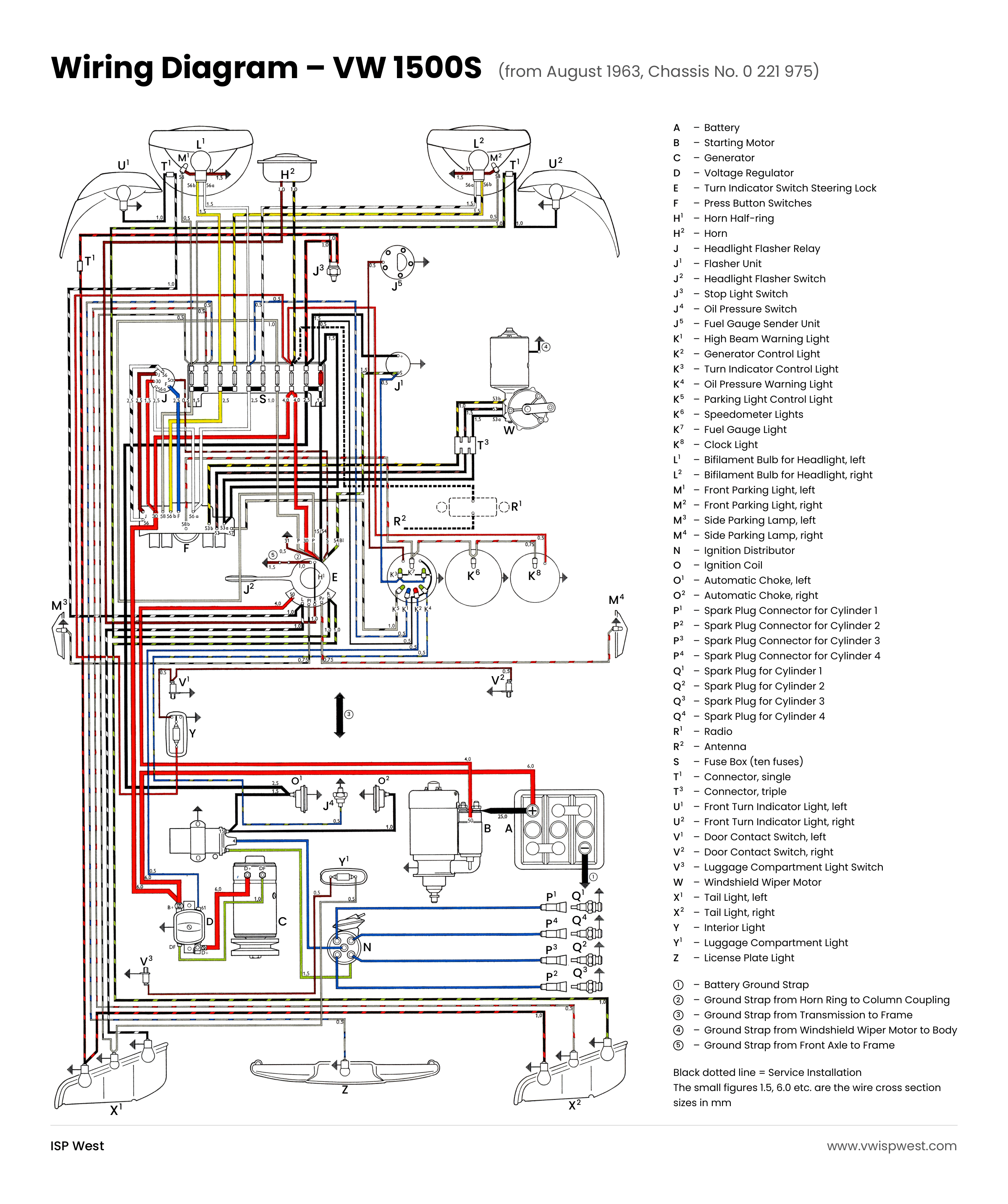

| Early 1964 |  |
 |

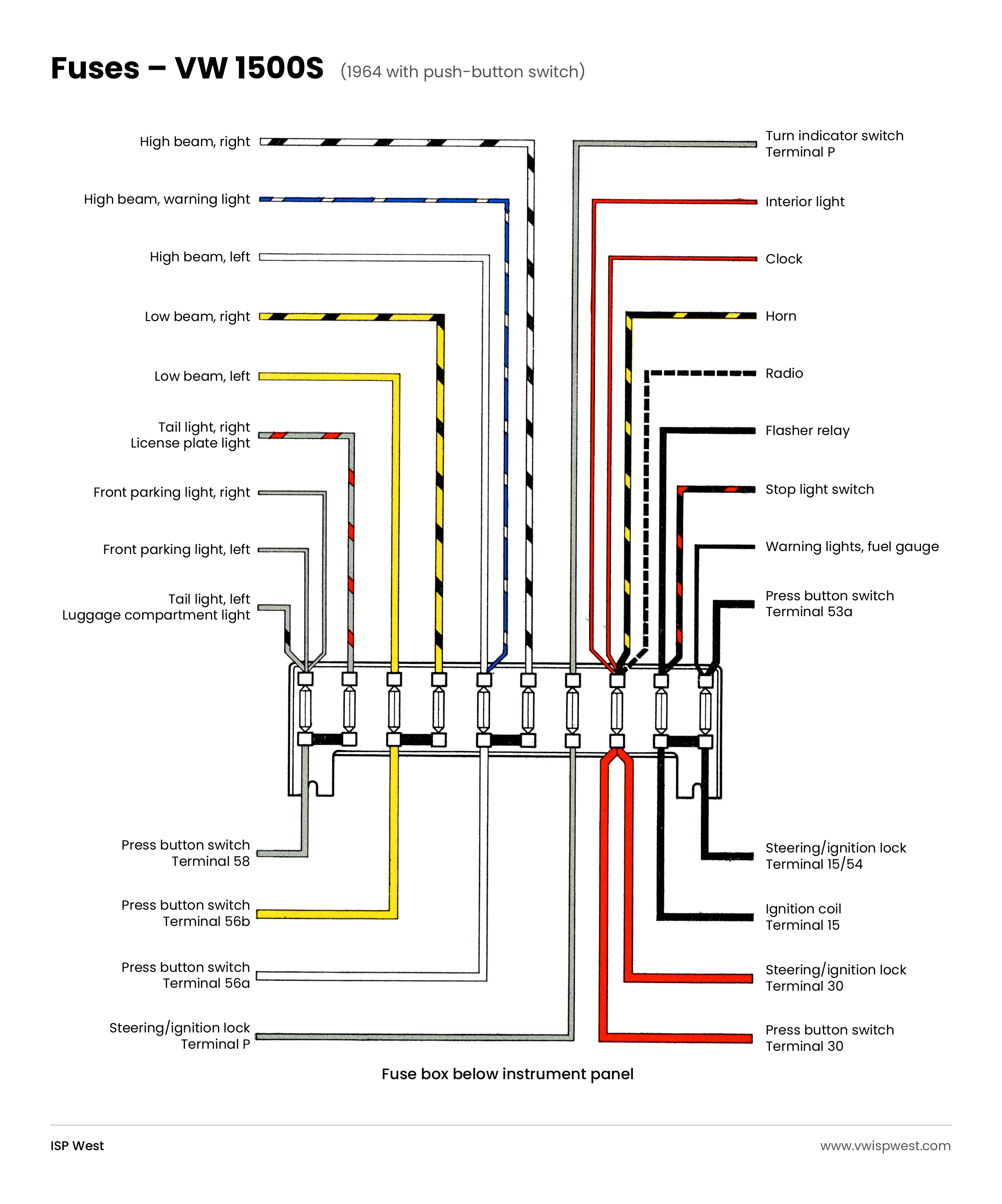

1500S (S-Model with push-button switch) | Diagram PDF |
| 1964-1965 |  |
 |

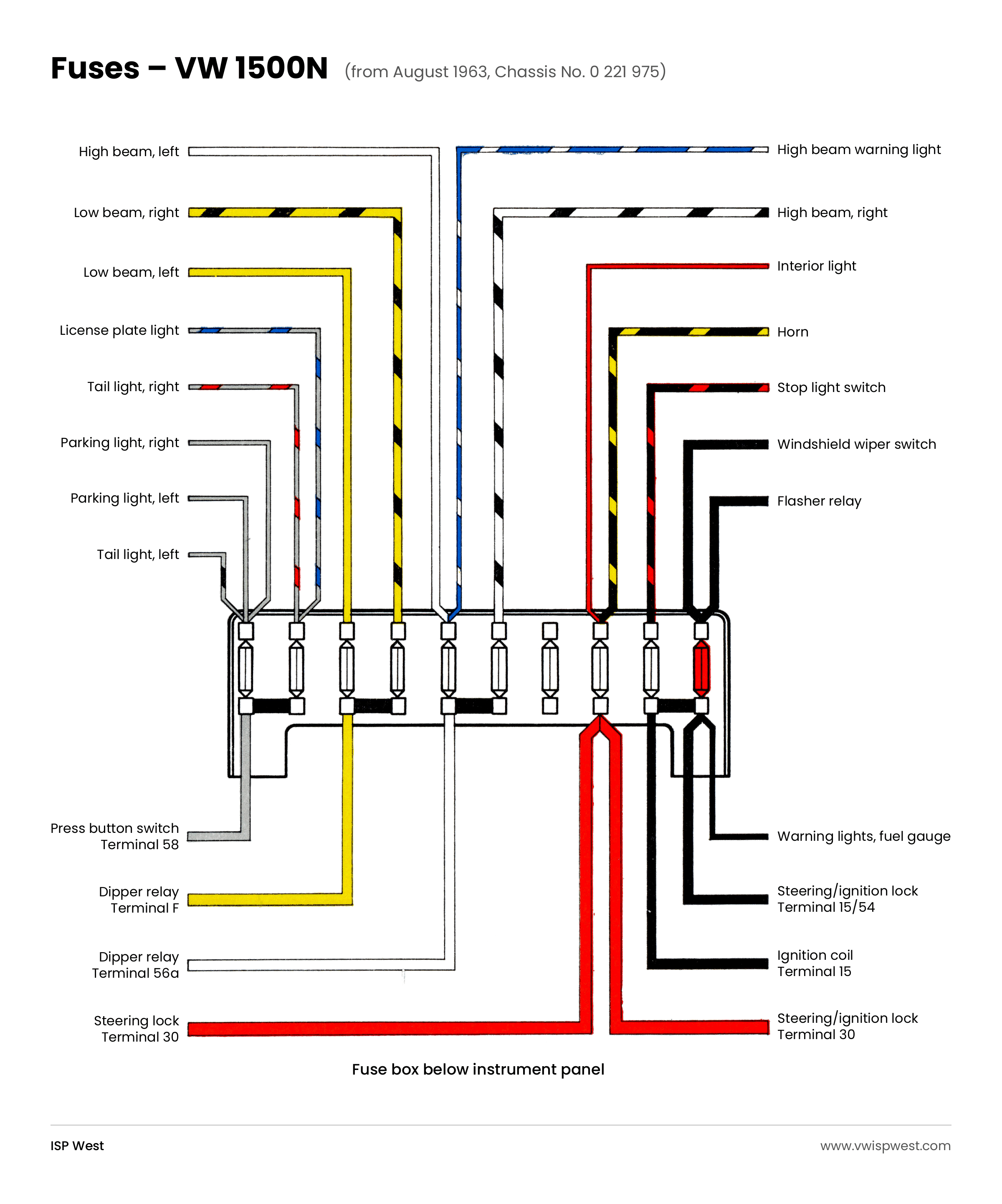

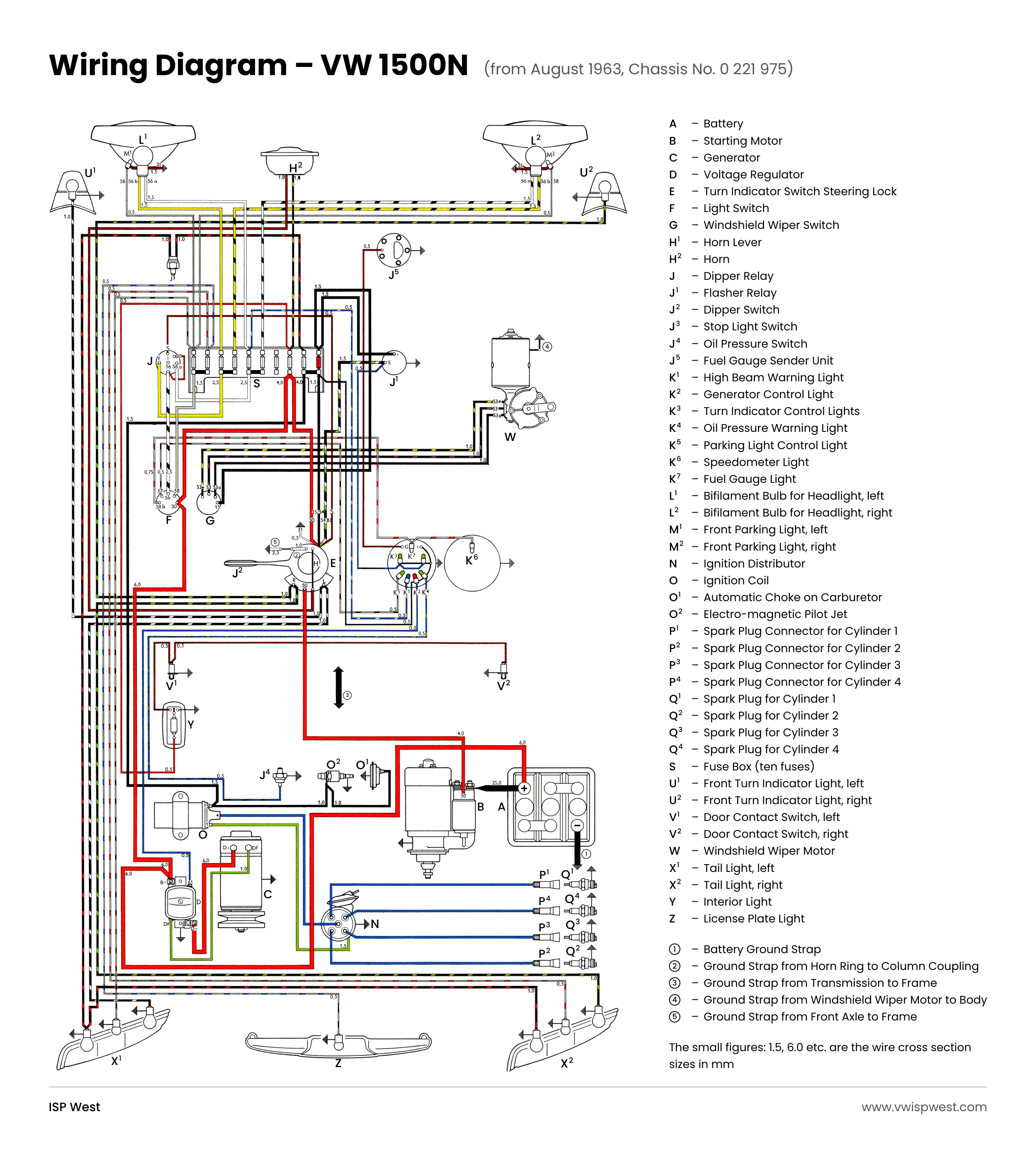

1500N (N-Model) | Diagram PDF |

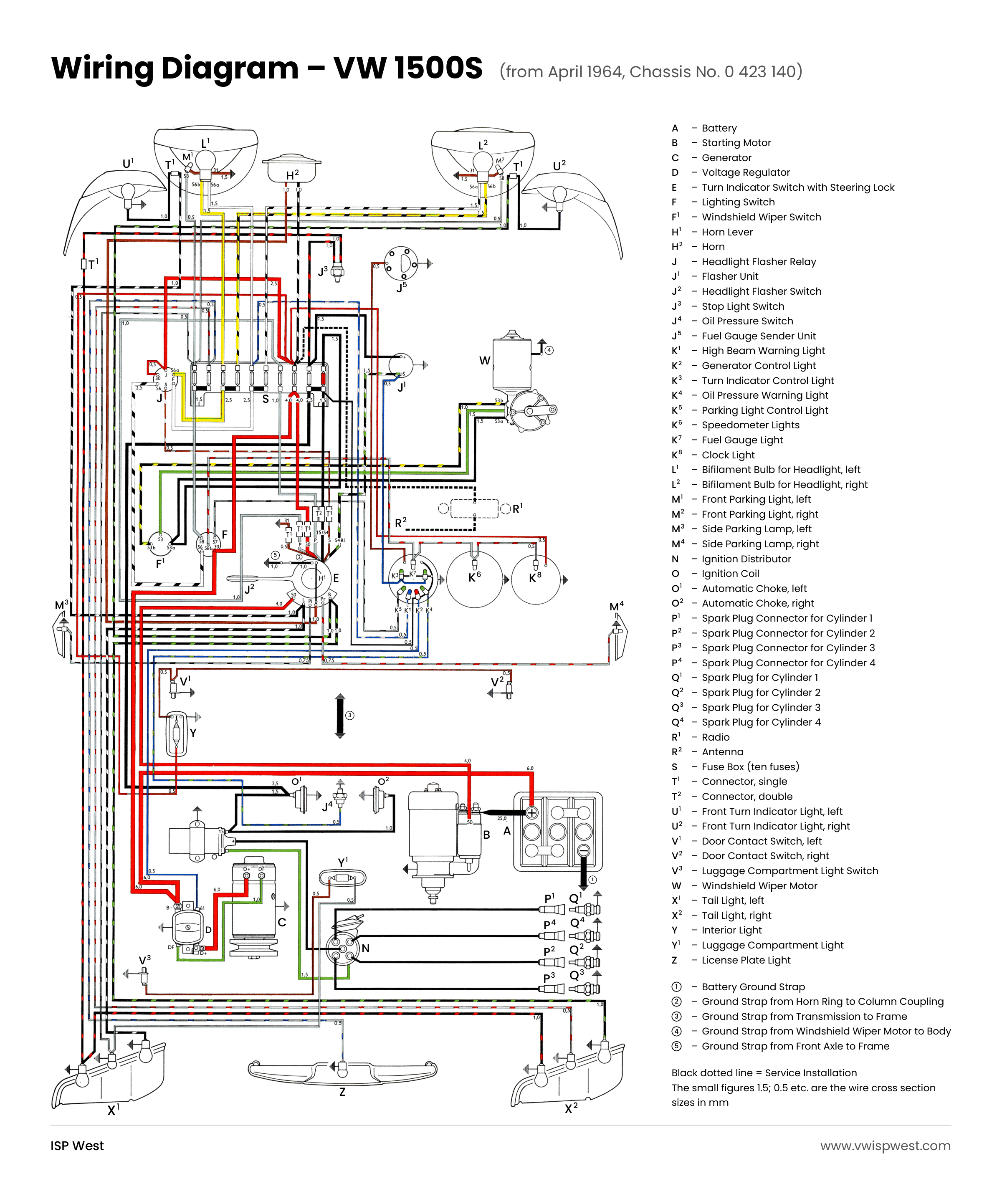

| 1964–1965 |  |
|
1500S (S-Model) | Diagram PDF |
| 1966 |  |

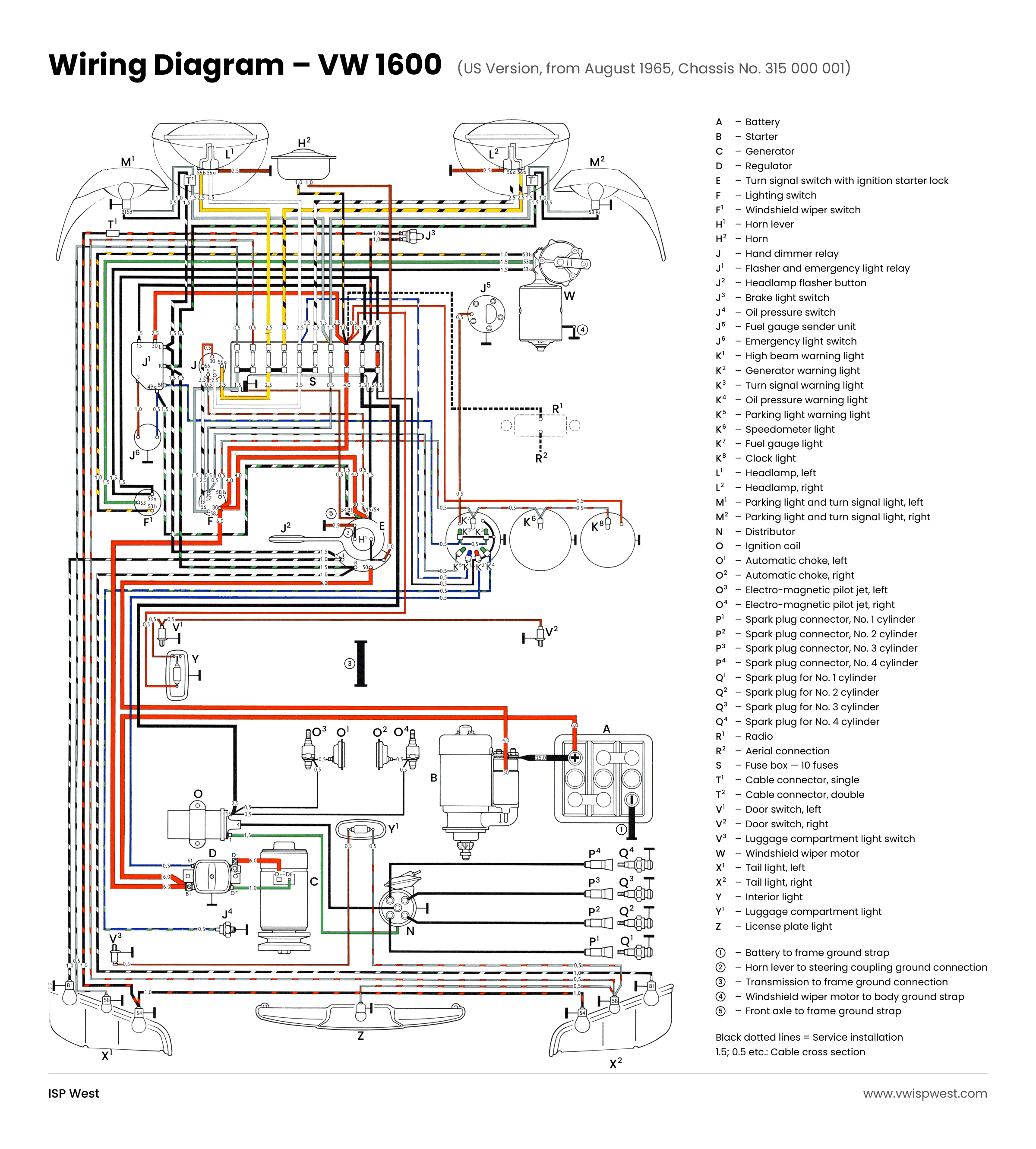

— | 1600 (U.S. Spec) | Diagram PDF |

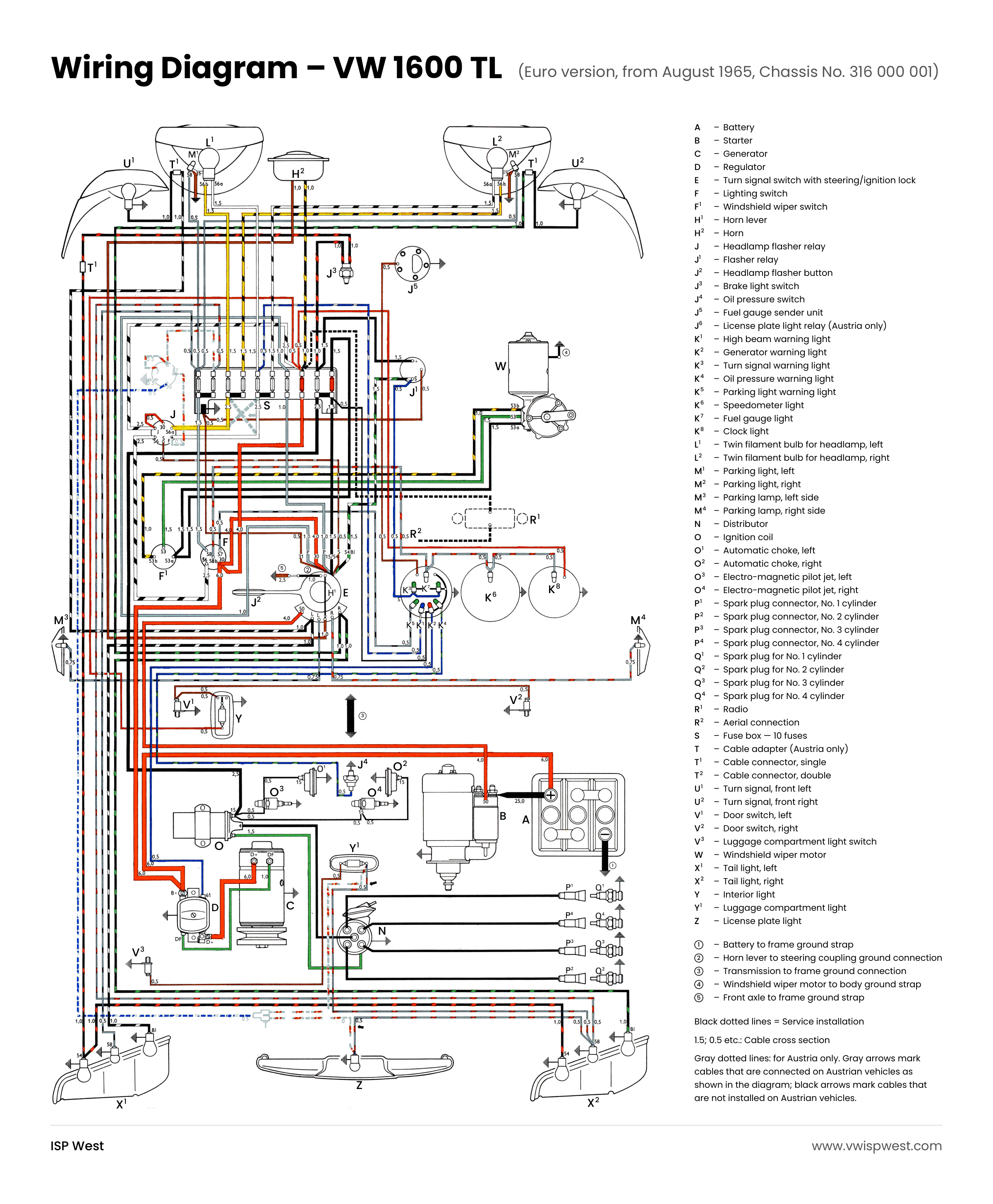

| 1966 |  |
— | 1600 TL (Euro Spec) | Diagram PDF |

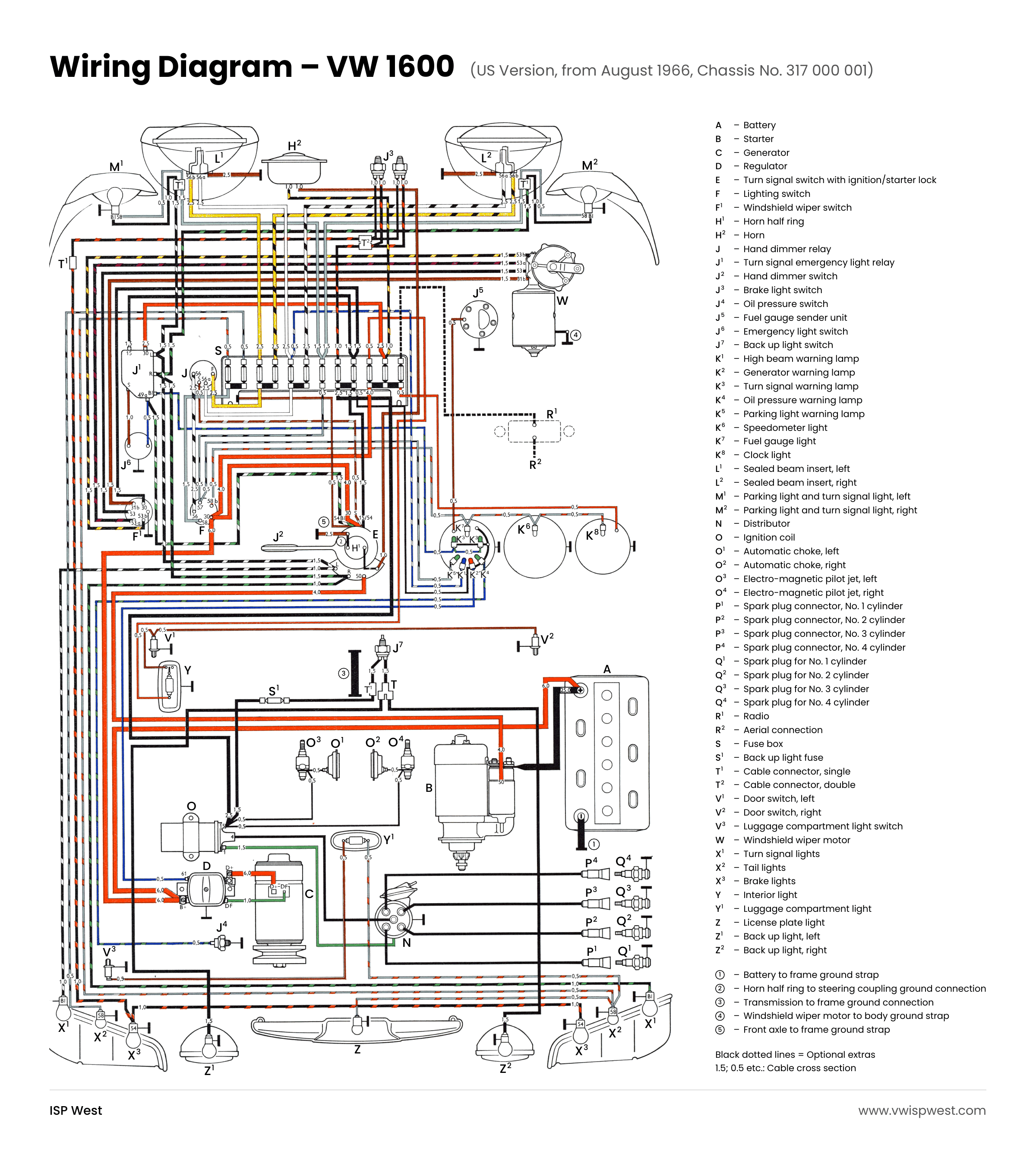

| 1967 |  |
— | 1600 (U.S. Spec) | Diagram PDF |
| 1967 |  |

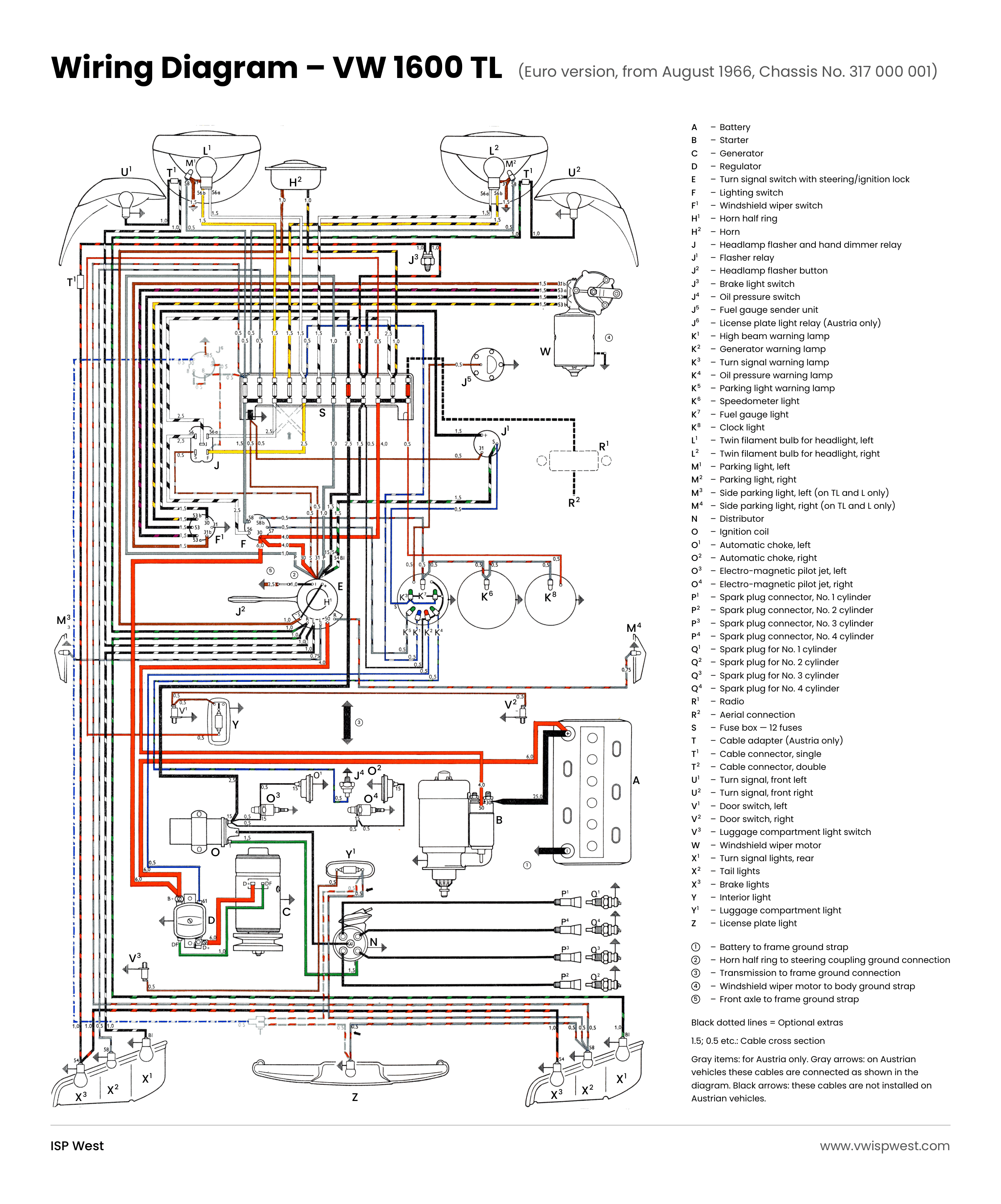

— | 1600 TL (Euro Spec) | Diagram PDF |

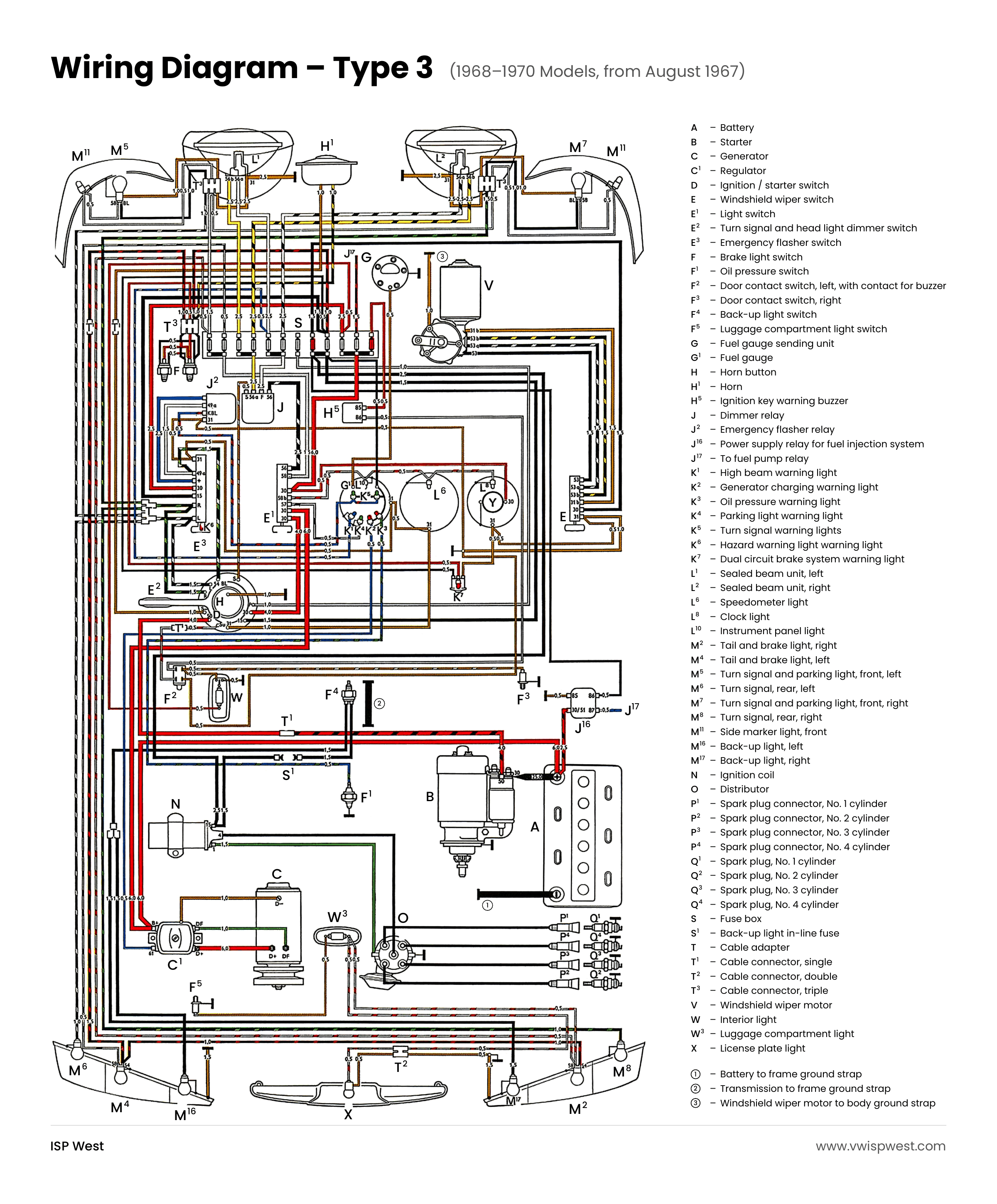

| 1968-1970 |  |
— | 1600 | Diagram PDF |
| 1970 |  |

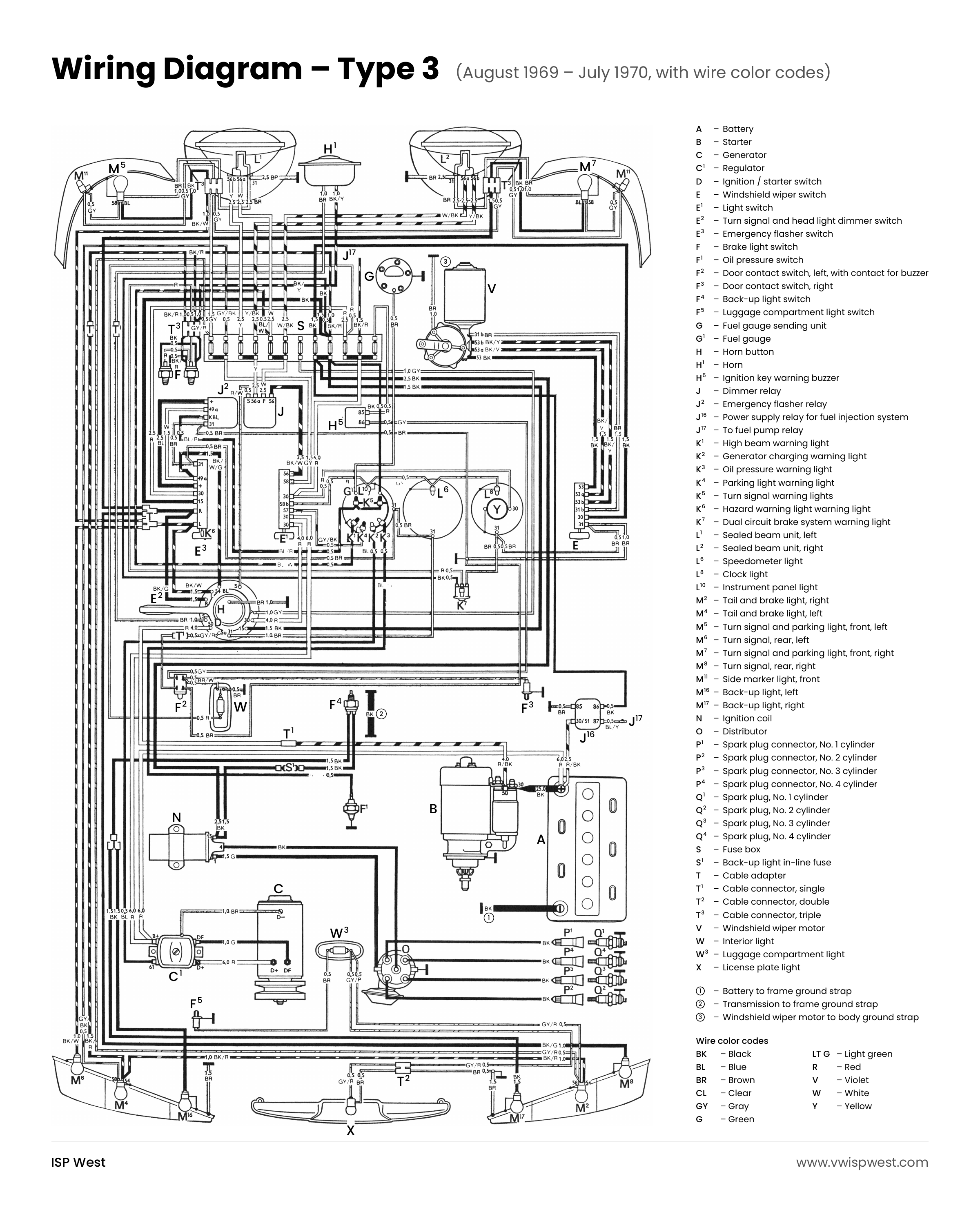

— | Black & White | Diagram PDF |
| 1971 |  |
 |

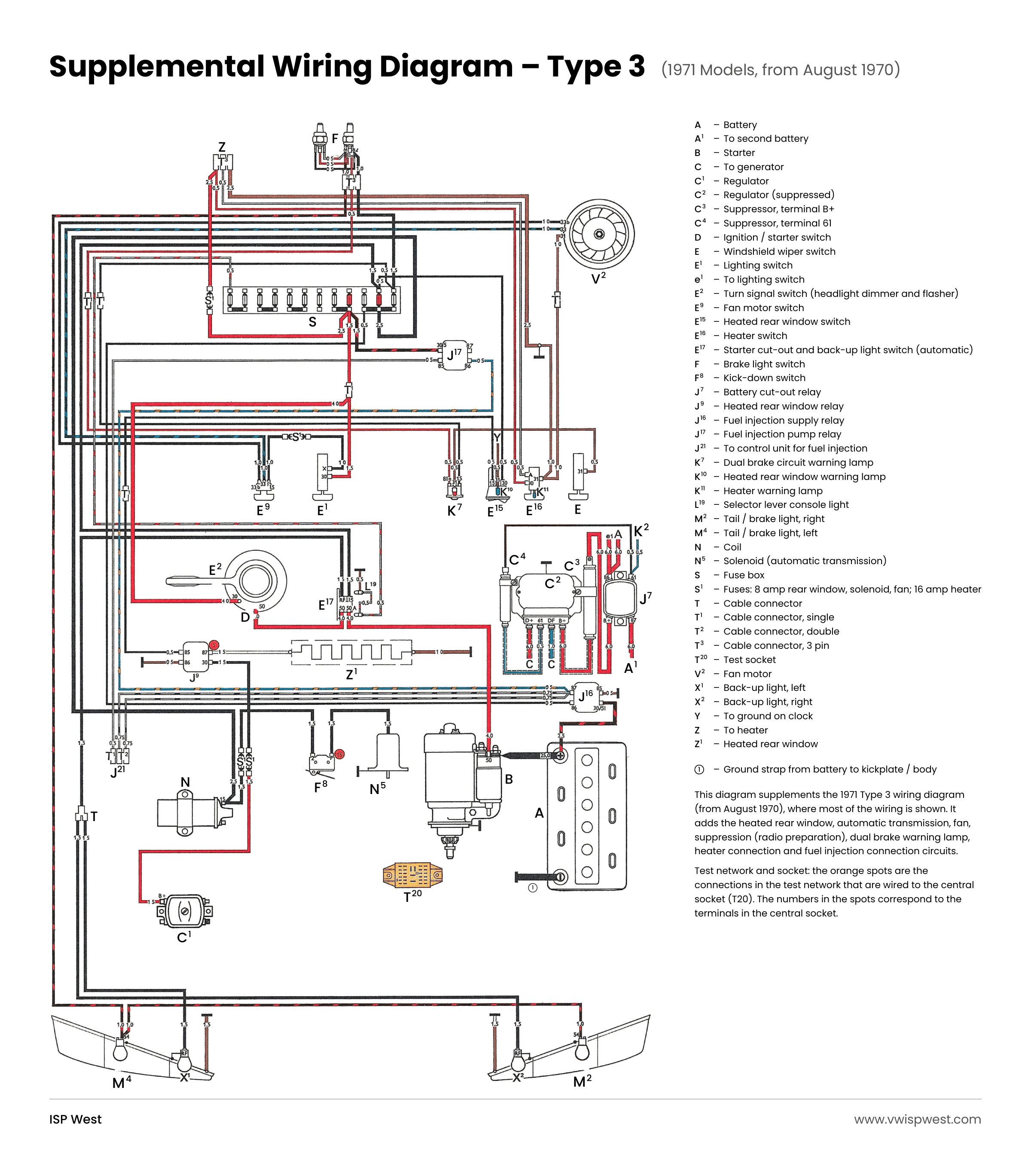

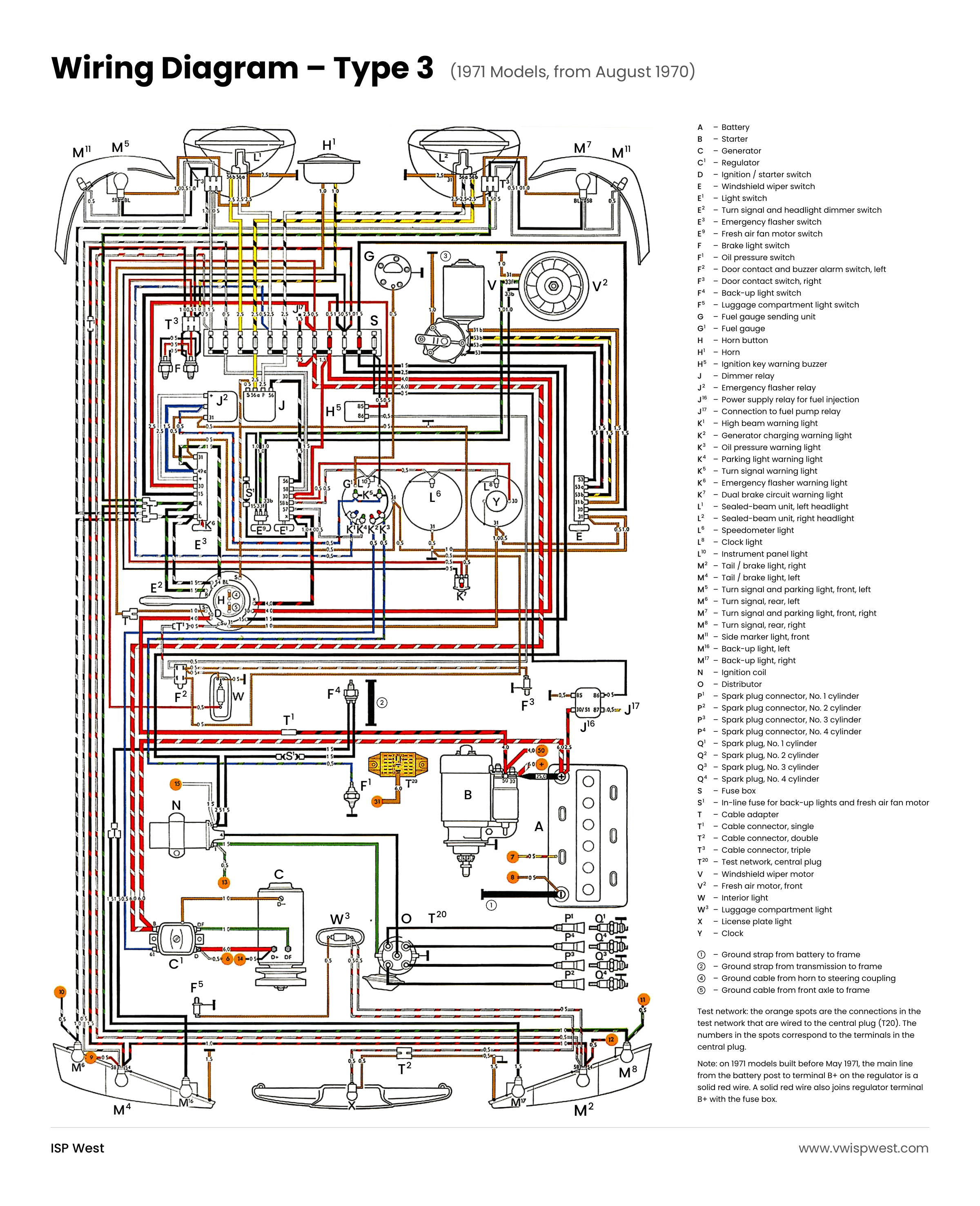

1600 (with supplemental diagram) | Diagram PDF |

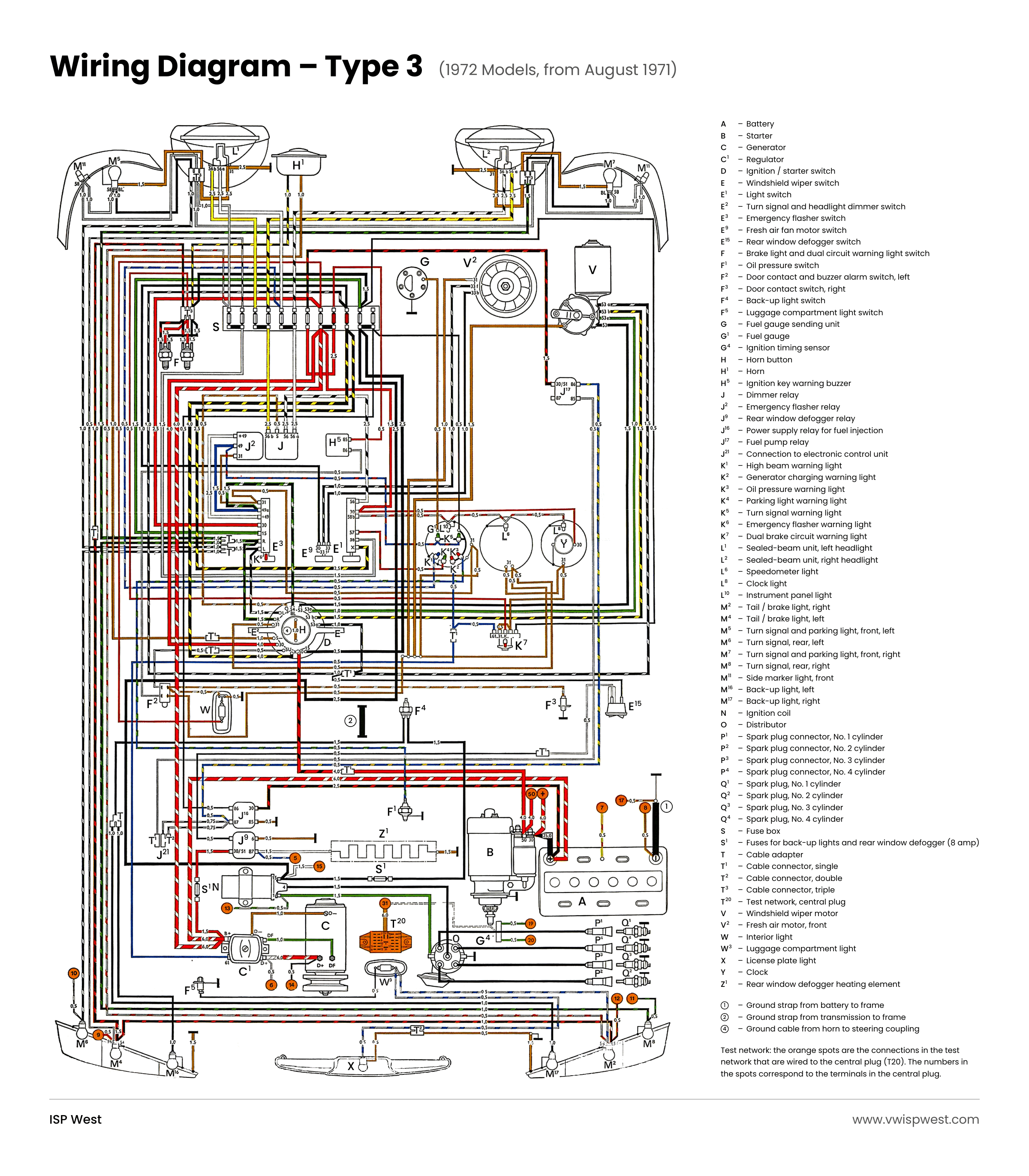

| 1972 |  |
 |

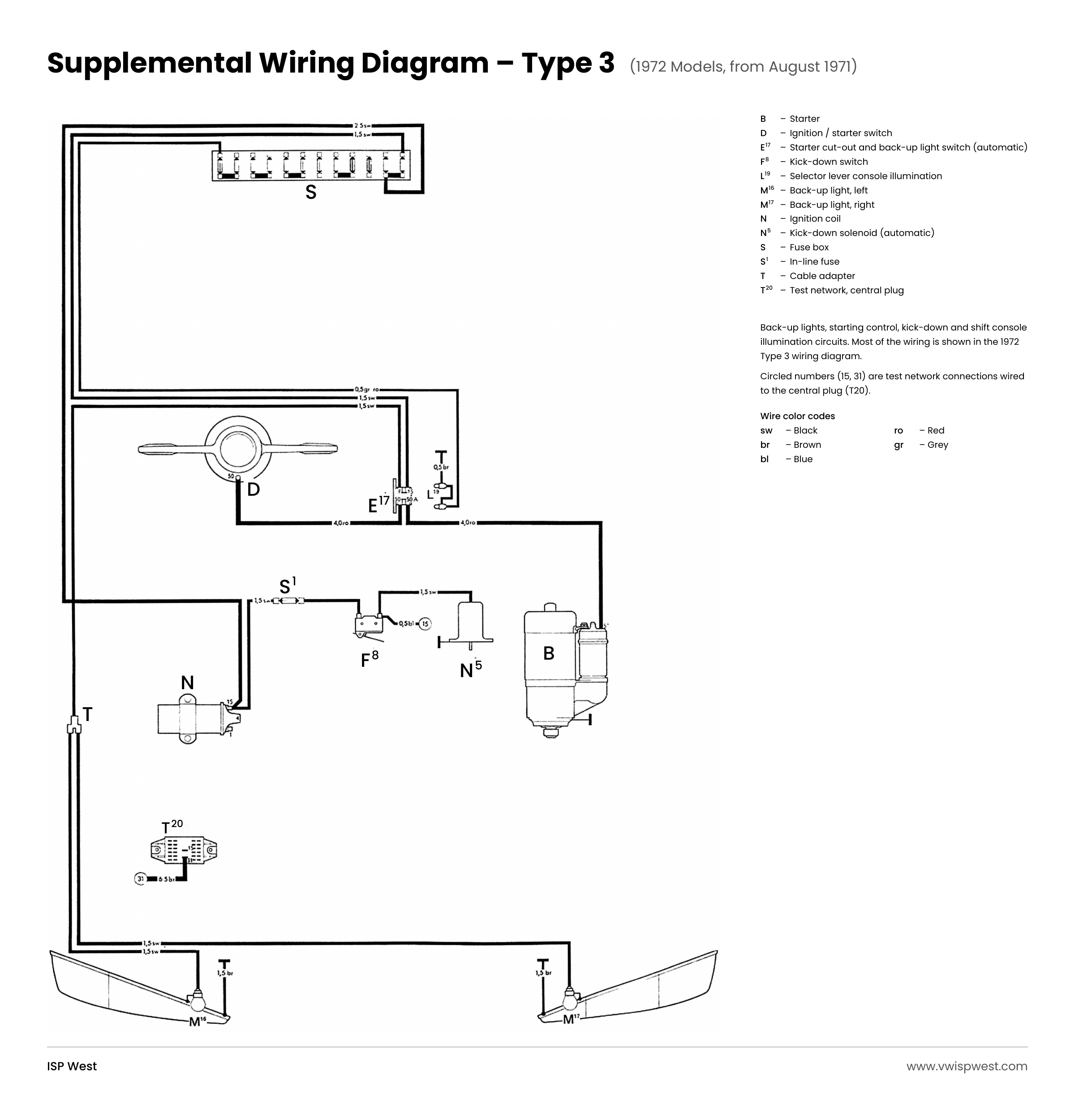

1600 (with supplemental diagram) | Diagram PDF |
| 1973 |  |

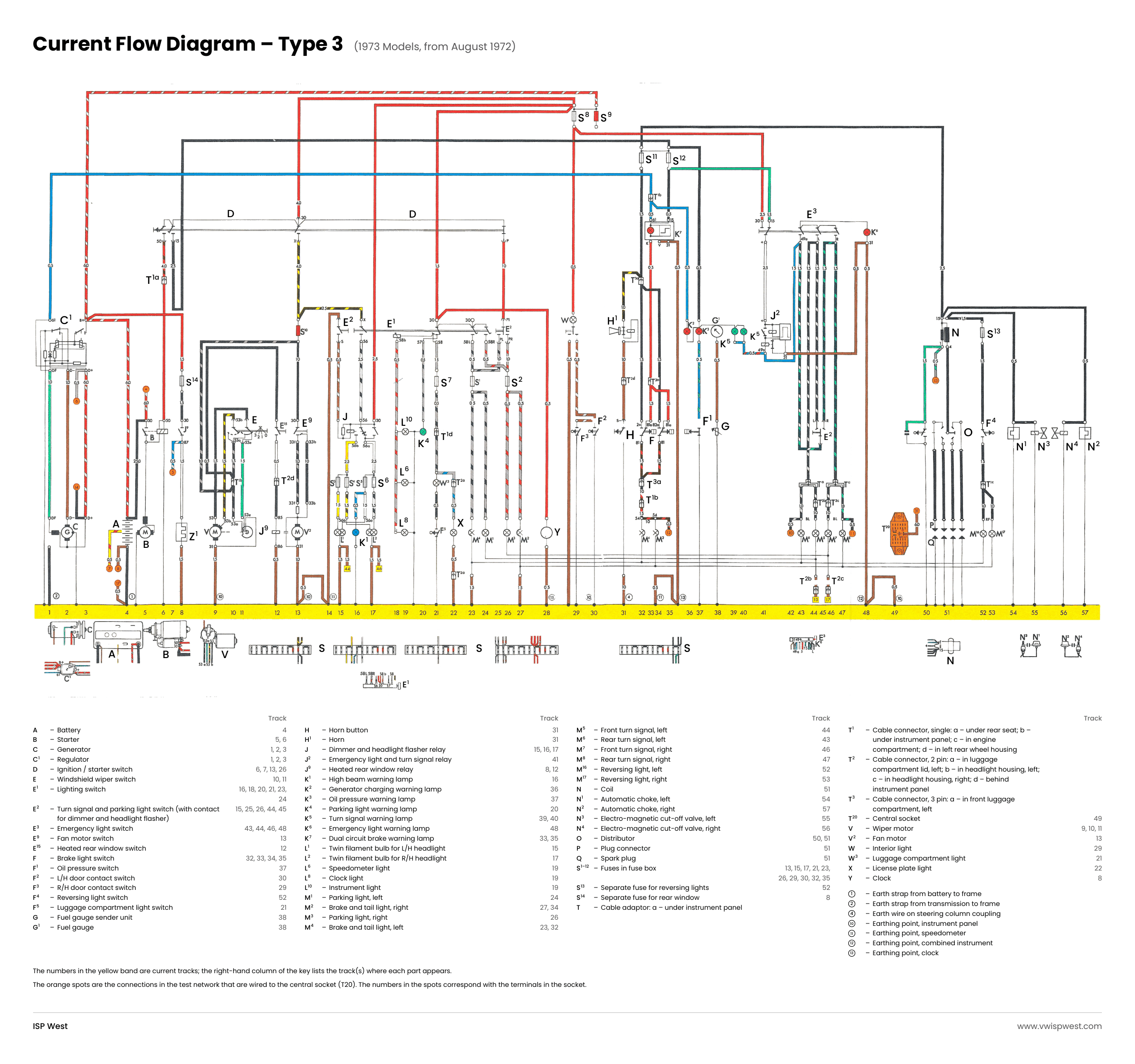

— | 1600 (current flow diagram) | Diagram PDF |
Type 34
Karmann Ghia
| Year | Diagram | Fuse Box | Model / Notes | Printable |
|---|---|---|---|---|
| 1961–1963 |  |
 |

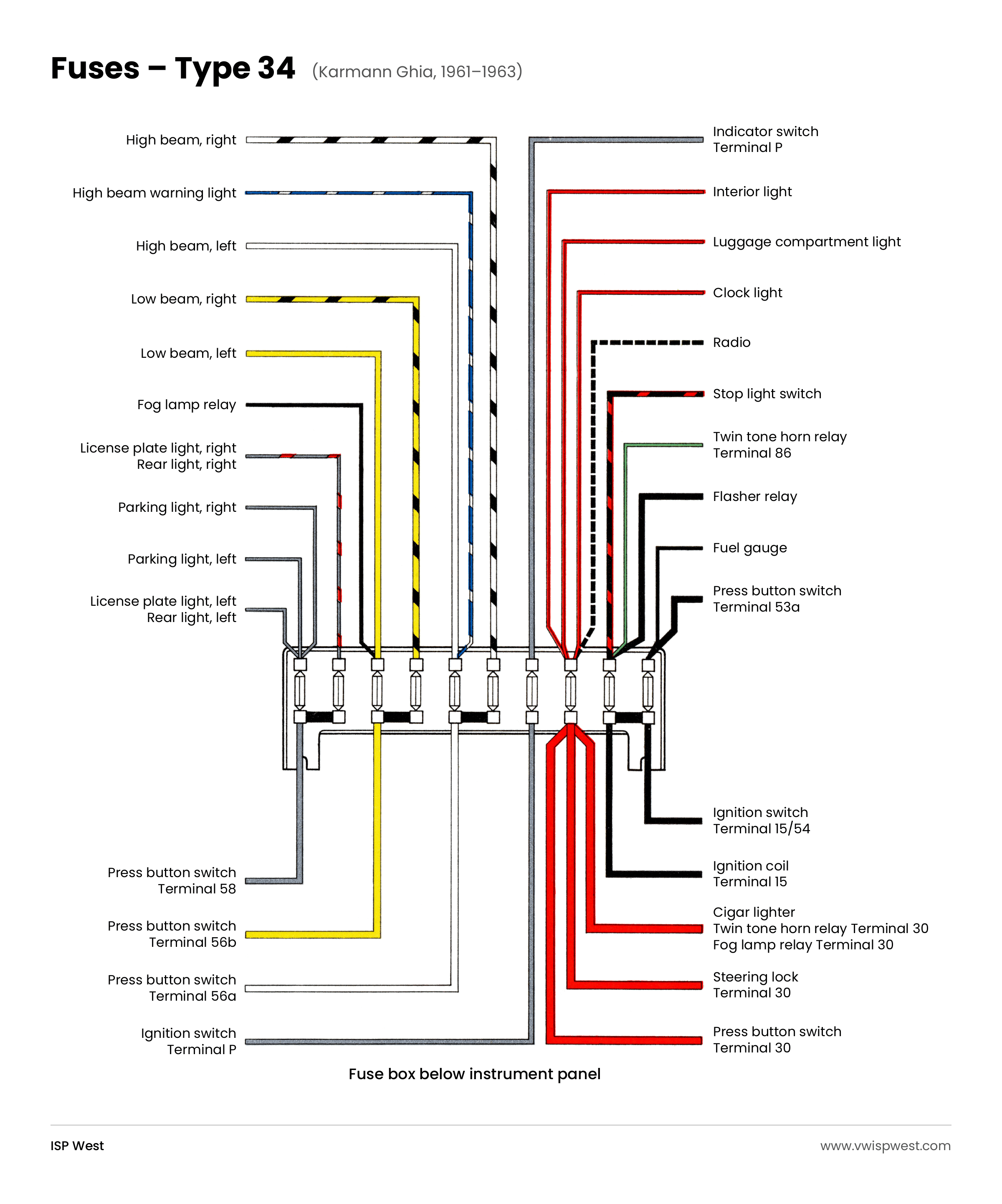

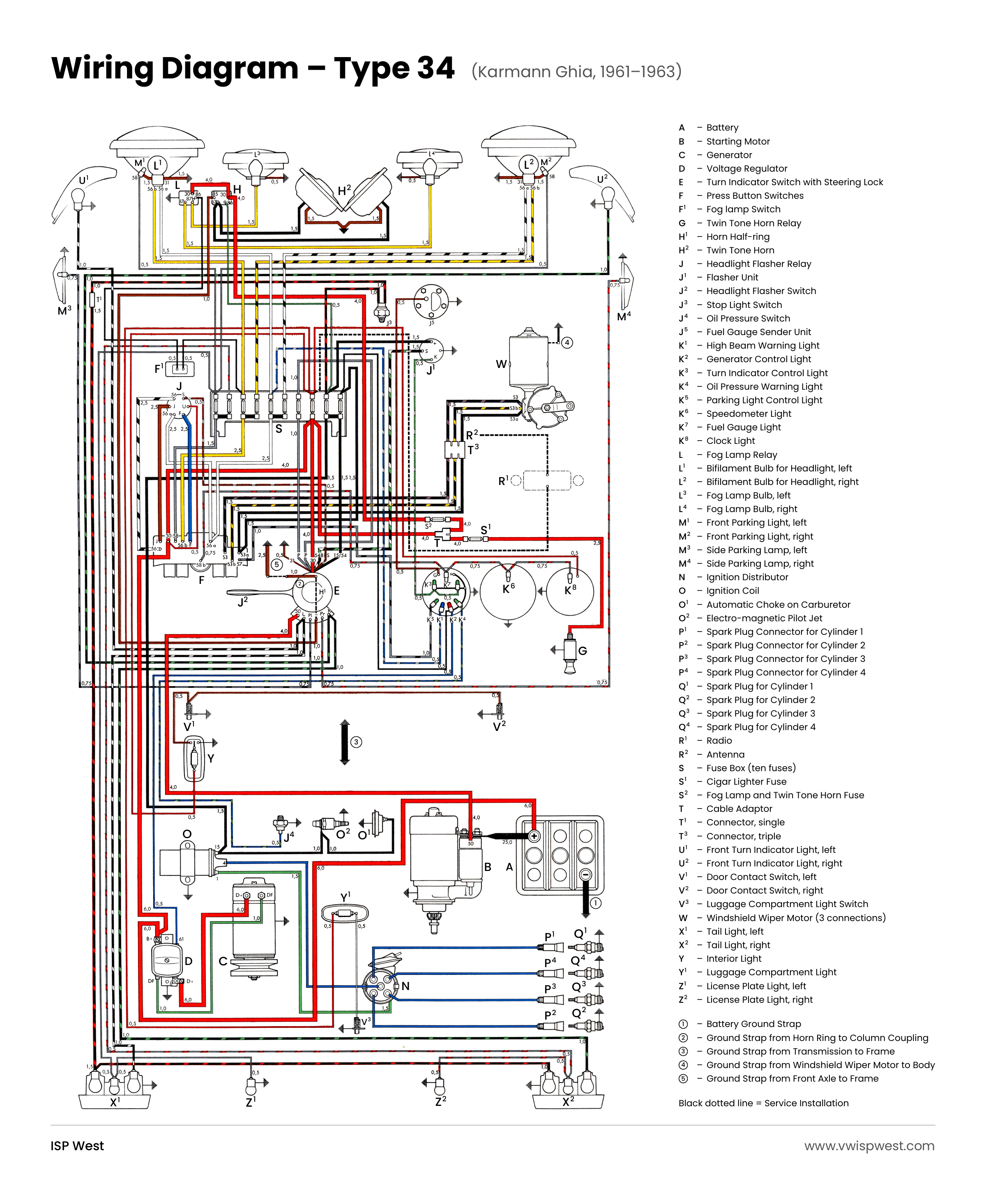

1500 (T34 Karmann Ghia) | Diagram PDF |
| 1965 |  |

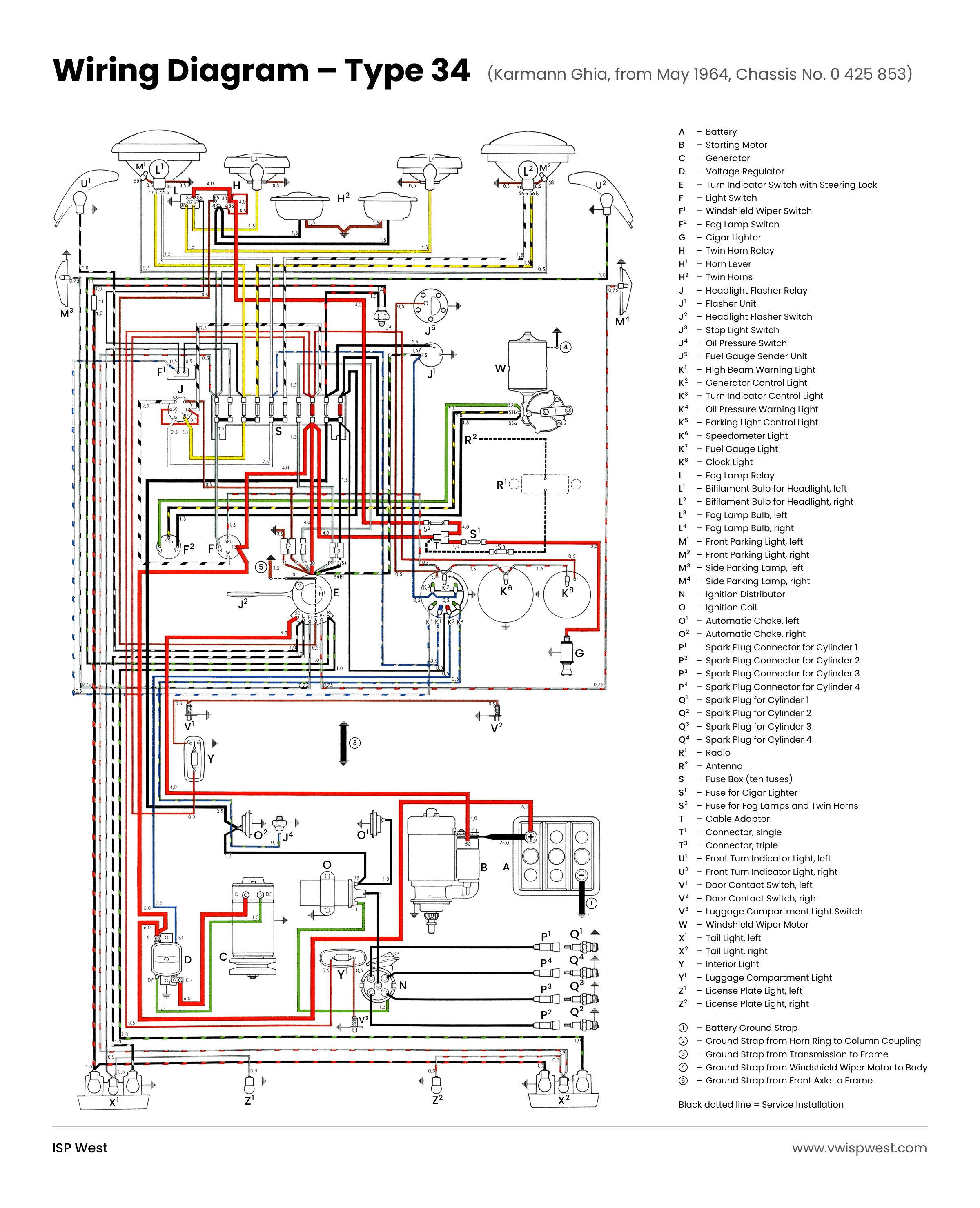

— | 1500S (T34 Karmann Ghia) | Diagram PDF |
Chassis Routing Diagram
Type 3 & Type 34
| Diagram | Description | Printable |
|---|---|---|
 |

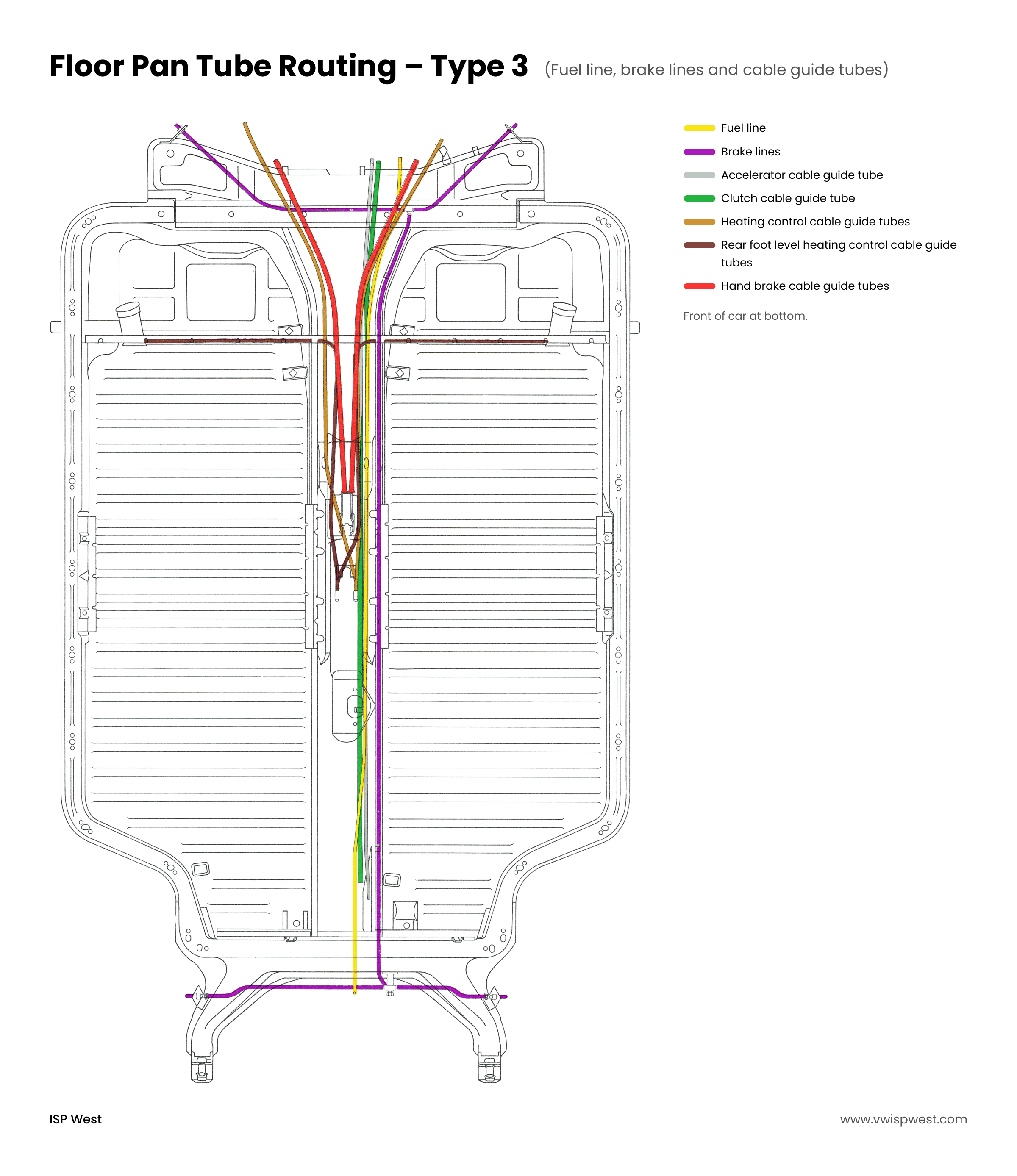

Floor Pan Tube Routing Fuel line, brake lines, and accelerator, clutch, heater and hand brake cable guide tubes |
Diagram PDF |
